State of the Art Design   Ideal For High Power Application


HDPLEX 400W Hi-Fi DC-ATX Power Supply is the first high efficiency and fanless DC-ATX Converter to support power demanding system. Top grade components and dedicated ripple noise suppressing circuit make HDPLEX 400W DC-ATX Converter a popular choice for computer audio systems (C.A.S) and small factor gaming systems.

HDPLEX 400W Hi-Fi DC-ATX Converter




Top Grade Components   No Compromise or Cutting Corners

Germany Würth Elektronik High Current Inductance, WIMA Audio Grade Capacitors, Infineon MOSFET, Texas Instruments TI-LM2642 Control Chip, and 6 Layer 2oz copper high quality PCB.

HDPLEX 400W Hi-Fi DC-ATX Converter





Dual Heatsink for PCB and MOSFET   24/7 Robust Operation



HDPLEX 400W Hi-Fi DC-ATX Converter





Low Ripple Noise   Perfect match for HDPLEX 200W Linear PSU



HDPLEX 400W Hi-Fi DC-ATX Converter





HDPLEX nanoATX Combo   Fanless-Powerful-Efficient


HDPLEX 400W Hi-Fi DC-ATX Converter+HDPLEX 300W AC-DC combo is a highly efficient, small, and very powerful HDPLEX nanoATX solution. This HDPLEX nanoATX combo could replace traditional bulky and noisy ATX power supply for mid-range PC. Popular High Power AC Adapter from Dell/Alienware are supported.



HDPLEX 400W Hi-Fi DC-ATX Converter

HDPLEX Hi-Fi 400W DC-ATX Power-Supply I/O Diagram

HDPLEX 400W Hi-Fi DC-ATX Converter
In stock

HDPLEX 400W HiFi DC-ATX

$95.00
HDPLEX 400W HiFi DC-ATX Enjoys Free Shipping Worldwide
Stock Status USA : In Stock · Germany : In Stock
Technical Specifications


Wattage: 400W (500W Peak) >94% DC-DC Efficiency

Feature:

High Voltage Endurance SANYO and Fujitsu Solid State Capacitors

PCIExpress Dual 6+2PIN Output support high wattage application

Optimized Layout for NFC S4 case

16V-24V wide range voltage input support, 6 layer 2oz copper PCB

Germany Würth Elektronik High Current Inductance, Smooth Response Curve for Peak Load

Infineon MOSFET, TI Control Chip, WIMA Audio Grade Capacitor

Dual Heatsink for MOSFET and PCB, Fanless Operation

Support 7.4x5.0mm w/center PIN (Ground) DC Input

Modular ATX output.

Operating Temperature: -10C - 70C


Safety: Overvoltage protection, Overload protection,Overcurrent protection, short circuit protection


Certification: RoHS (HTT141103075R), FCC(HTT141103075F),CE (HTT141103075E),EN 61003-3-2:2006+A1:2009+A2:2009,EN 61000-3-3:2008. PDF


PCB Dimension:160(L) x 51.5 (W) x 30 (H) mm


Mouting hole spacing: 122.12mm*43.29mm


Input Voltage: 16V-24VDC


Input Connector: 7.4x5.0mm w/center PIN (Ground) and Molex 6PIN


Key Specification:

Output Voltage Max DC Current Full Load DC Current Output Voltage Tolerance Ripple Noise
(mVp-p,MAX)

+3.3V       12A    10A       1%        10mV
+5V       12A    10A       1%        10mV
+12V       50A    35A       1%        10mV
+5VSB       2A    1.5A       3%        10mV


Connector: ATX 24PIN-24PIN Cable (20cm) x 1,8-4+4PIN Power cable for CPU (45cm) x 1, Dual 8PIN (6+2 Type Dual Head) Power Cable for PCIE device x 1, 4PIN -SATA Powerx3 and Molex x 1 (40cm), 7.4x5.0mm DC Input to Molex Male 4PIN Cable

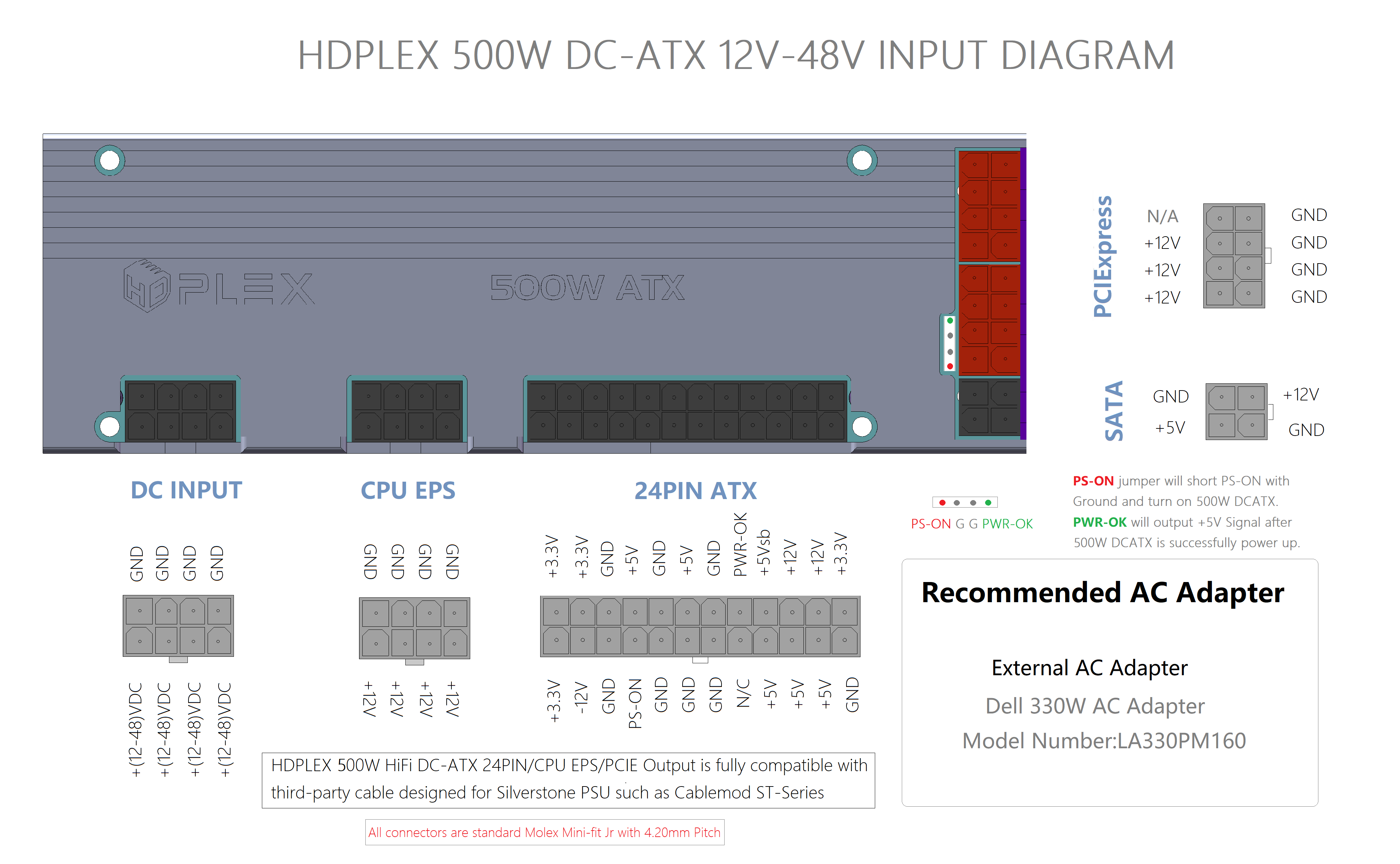

HDPLEX Hi-Fi 400W DC-ATX Power Supply I/O Diagram


HDPLEX 400W Hi-Fi DC-ATX Converter I/O Diagram

HDPLEX 300W HiFi DC-ATX Diagram (Discontinued)



HDPLEX 250W HiFi DC-ATX Diagram (Discontinued)
Hardware Compatibility


We recommend HDPLEX 400W HiFi DC-ATX Power Supply and HDPLEX 300W AC-DC with PFC combo for CPU intensive application or mid range gaming platform. This HDPLEX nanoATX combo has very small footprint and is completely fanless and silent. This nanoATX solution could also achieve very high efficiency thanks to the HDPLEX 300W AC-DC active power factor correction feature.

HDPLEX 400W Hi-Fi DC-ATX Converter



HDPLEX HiFi 400W DC-ATX can also work with HDPLEX 160W AC-DC adapter.

HDPLEX 400W Hi-Fi DC-ATX Converter



We recommend HDPLEX Hi-Fi 400W DC-ATX Power Supply with high wattage 19V laptop adapters for CPU intensive application or mid range gaming platform. Recommend High Power 19V Output Laptop Adapters : Dell 330W DA330PM111,ADP-330AB,XM3C3 Dell(FlexTronics) 240W PA-9E, PA9E, 330-4128, ADP-240AB B, GA240PE1-00, J938H, J211H, Y044M.

HDPLEX 400W Hi-Fi DC-ATX Converter

For PC audio users, we recommend this 400W Hi-Fi DC-ATX Power Supply board due to its low ripple noise feature. Coupled with HDPLEX 200W Linear Power Supply, this combo will offer unsurpassed clean power, free of high frequency noise commonly seen in switching ATX power supply.

HDPLEX 400W Hi-Fi DC-ATX Converter
Package Content


1 x HDPLEX 400W DC-ATX Power Supply (16V-24V wide range voltage)

HDPLEX 400W Hi-Fi DC-ATX Converter

1 x 24PIN -20+4PIN ATX Cable (21cm) Black Color
HDPLEX 400W Hi-Fi DC-ATX Converter

1x 8PIN - 4+4PIN Cable for CPU EPS Power (45cm) Black Color

HDPLEX 400W Hi-Fi DC-ATX Converter

1x 8PIN - Dual 6+2PIN Cable PCIExpress (45cm) Black Color

HDPLEX 400W Hi-Fi DC-ATX Converter

1 x 4PIN-4xSATA Power (45cm) Black Color

HDPLEX 400W Hi-Fi DC-ATX Converter

1 x 7.4x5.0mm with Center PIN(Ground) DC Input to 6PIN Molex (45cm) Black Color

HDPLEX 400W Hi-Fi DC-ATX Converter
