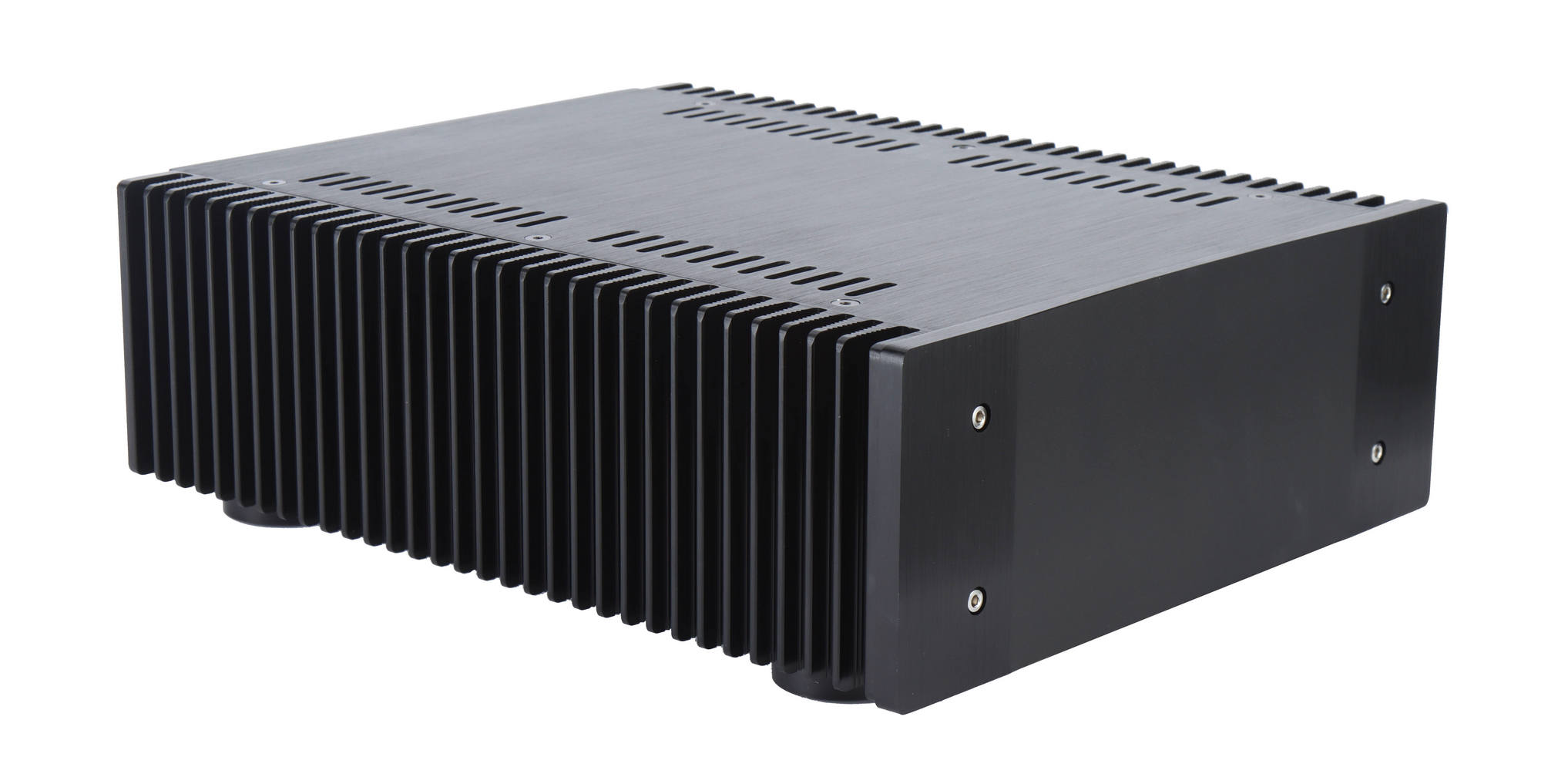

HDPLEX 400W ATX Linear Power Supply















Out of stock

HDPLEX 400W ATX Linear Power Supply

$795.00
HDPLEX 400W Linear PSU Enjoys Free Shipping Worldwide
Stock Status USA : ETA Sep 2017 · Germany : ETA Sep 2017
Technical Specifications


Wattage:400W

Feature:

Top of the Line Hi-End Audio ELNA Capacitors

High Quality EMI/RFI Filter

Modular ATX Output, Full Spectrum support for ATX PC. No DC-ATX Converters Needed.

24PIN/8PIN EPS for CPU/8PIN for PCIE/4PIN for SATA HDD/SSD

High Quality 400VA Silent R-Core Transformer provides clean energy

Independent 19V/12V/9V Adjustable/5V DC

9V User Adjustable Output from 5V-19V: Adjust Voltage via External Knob and Voltage LCD Display.

USB 3.1 Type C 5V Output, Support Mobile Platform.

19V/7AMP Output via Neutrik XLR Connector, Supprt Thin ITX/NUC/HDPLEX 160W/HiFi 250W DC-ATX Converter

12V/7AMP Output via Neutrik XLR Connector, support PicoPSU or 12V based CE device.

Linear Technology LT1083 Low Dropout Positive Fixed Regulators for 12V Adjustable and 5V Output

9V Adjustable via Neutrik XLR Connector from 5V-19V/3AMP Output support USB Regen and SoTM PCIE USB card.

5V/3AMP via Neutrik XLR Connector Output support PPA (Paul Professional Audio) USB Audio card and Squeezebox.

Passive aluminum chassis guarantee absolute silent and stable operation

No Humming or Buzz noise for 50Hz and Peak load, 100% Silent

Low ripple noise and void of high frequency noise



Chassis Material/Color: Brushed Aluminum/ All Black


Power Indicator: Yes (Blue LED via Face Plate LED Port)


Power ON/OFF Switch: Yes (On the Back Plate )


Operating Temperature: -10C - 70C


Safety: Overvoltage protection, Overload protection,Overcurrent protection, short circuit protection,6A Fastblow Fuse


Certification:

CE/EN60950-1 (TCT1405072566S-1)
RoHS (TCT1405074557R-1)
FCC (TCT1405074391F-1)
EMC (TCT1405073270E-1)

Idle Power Consumption: < 5W


Size:320(L) x 235 (W) x 95 (H) mm


Weight:14.5kg/30 lbs


Input Voltage: 110V/240V AC (MAX 260V AC)


AC Input Connector: IEC with EMI/RFI Filter


ATX Modular Output: 24PIN/8PIN EPS for CPU/8PIN for PCIE/4PIN for SATA HDD/SSD


DC Output:Neutrik XLR Output


DC Output:USB 3.1 Typc C 5V Output


Specification for Independent Output:

Output Voltage Max DC Current Full Load DC Current Output Voltage Tolerance Ripple (mV)

+19V       7A   5A       2%        3mV
+12V       7A   5A       2%        2mV
+9V Adjustable 7V-19V       3A   2A       2%        2mV
+5V (Including USB 3.1 Type C)       3A   2A       2%        2mV


Specification ATX Modular Output:

Output Voltage Max DC Current Full Load DC Current Output Voltage Tolerance Ripple (mV)

+12V       20A   18A       2%        3mV
-12V       1A   0.5A       2%        5mV
+5V       16A   13A       2%        3mV
+3.3V       16A   13A       1%        3mV
5V SB       3A   12A       1%        5mV
HDPLEX 400W ATX Linear Power Supply Installation Guide



The 400W ATX linear power supply default input is 220V AC (support max 260V AC). Please push red switch down to 110V position if you are in 100V-120V AC area.





Plug the AC power cord (AC power cord is not included). Switch the power button ON. The LCD screen will show the current output voltage for the adjustable 9V output. The adjustable range is from 7V-19V.





Adjust the knob clockwise to increase the voltage and anti-clockwise to decrease the output voltage.

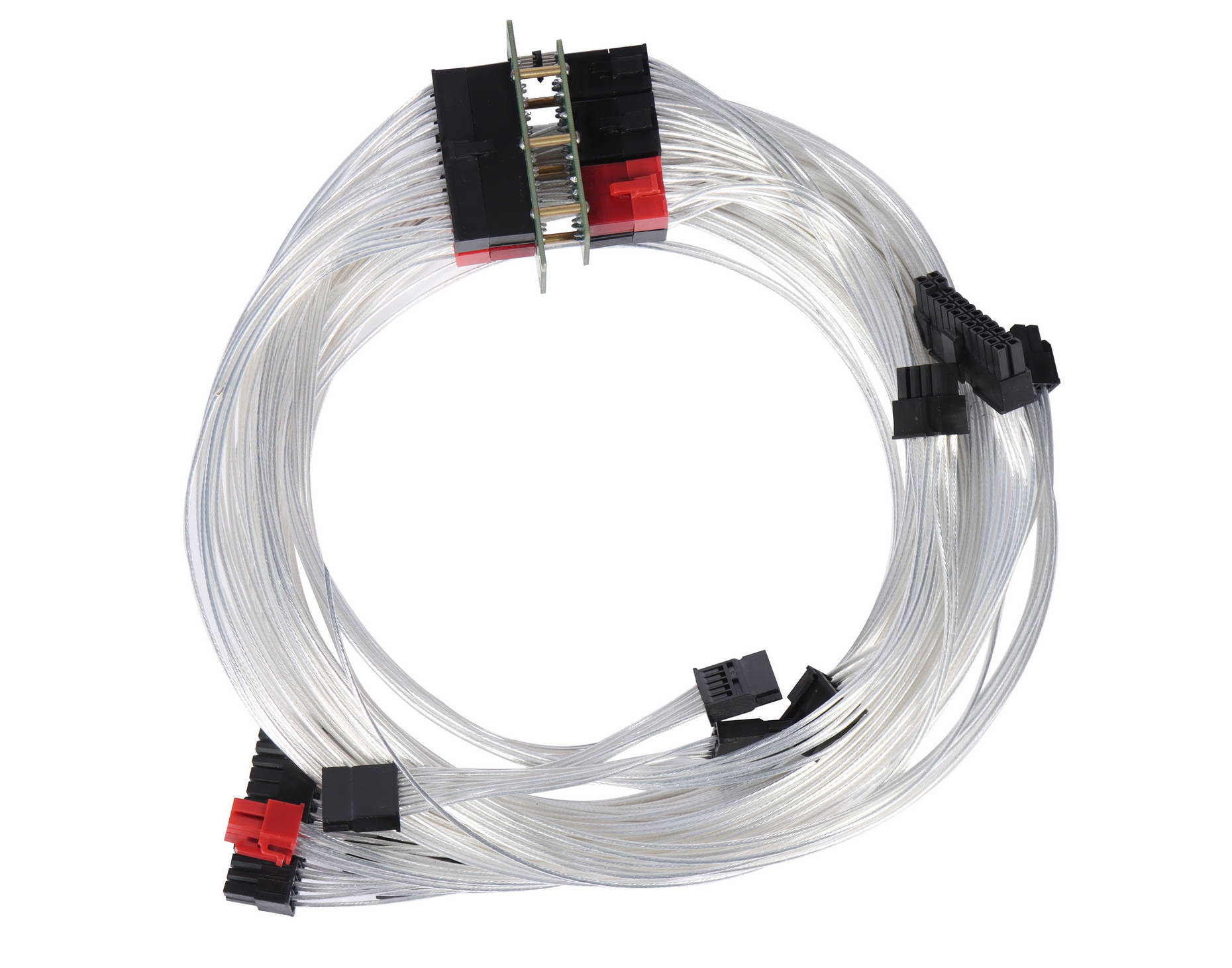

400W ATX linear power supply includes two sets of ATX cable bundles. The external cable bundle is 1m length. The external ATX cable bundle has four cables: 24PIN-24PIN Cable, two 8PIN-8PIN cables, and 4PIN-4PIN cable. The external ATX cables are used to connect 300W ATX linear power supply to ATX modular bridge board. The internal ATX cable bundle is 50cm length: 24PIN-24PIN Cable, 8PIN-PIN EPS Cable, 8PIN-8PIN+6PIN PCIE Cable, and 4PIN-Molex+3SATA power Cable. The internal cable connects output from ATX modular bridge board to the motherboard, video card, and hard drives.





Please connect the ATX cable with the narrow latch clip to the 400W ATX linear power supply ATX output. The head with the wider latch clip connects to the input of the HDPLEX ATX modular bridge board.







Press the latch clip when plug. Once the ATX cables are fully plugged into the 400W ATX linear power supply ATX output, they will be difficult to be disconnected. This is to guarantee robust connection. If you need to disconnect the cables, press the latch clip and move the cable head up and down a little bit to disconnect.




Install four special 3mm height copper post to the HDPLEX H5 back plate and install the HDPLEX ATX modular bridge input board to four copper posts. The side with the smaller board is installed inside H5 back plate.





Plug the internal ATX cable bundle into the ATX Modular bridge outputs first before mounting the H5 black plate to the HDPLEX H5 chassis.




HDPLEX 400W ATX linear power supply also includes an HDPLEX ATX Adapter Bracket which enable mounting ATX modular bridge input board on regular ATX Tower PC case. This ATX adapter bracket is mounted on four mounting holes for standard ATX power supply.


HDPLEX.ATX.Adapter.Bracket





1 x USB 3.1 Type C ----5.5/2.5 DC Cable (1m) (5V Output, Works with 5.5/2.5-SATA Cable to Power SSD)



1 x 5.5/2.5 DC to 2 SATA Power Connector Cable (50cm) (5V Output, Works with USB 3.1 Type C or GX16-5.5/2.5 Cable to Power SSD) and PCI Bracket with two port for 5.5/2.5 DC Jack Input. Enable easy internal wiring for PPA card and SSD power. No extra drilling on the PC case needed!

HDPLEX 400W ATX Linear Power Supply Package Content


1 x HDPLEX 400W Linear Power Supply


1 x ATX Bridge Modular Input Board
1 x ATX External Modular Cable Set from 400W ATX Linear Power Supply to ATX Bridge Modular Board Input Connector (1m Length)
1 x ATX Internal Modular Cable Set from ATX Bridge Modular Board Input Connector to ATX motherboard. (50cm Length)
1 x HDPLEX ATX Adapter Bracket for ATX Bridge Modular Input Board, Enable ATX Tower Case to Install ATX Bridge Modular Input Board

1x XLR---7.4*5.0 w/PIN Cable(3ft/1m)



2x XLR---5.5/2.5mm Connector Cable(5ft/1.5m) and 2 x XLR---5.5/2.1mm Connector Cable(5ft/1m) (For PicoPSU/SoTM/PPA/JPLAY USB Card External 9V Input,Squeezebox 5V Input)



1 x USB 3.1 Type C ----5.5/2.5 DC Cable (1m) (5V Output, Works with 5.5/2.5-SATA Cable to Power SSD)



1 x 5.5/2.5 DC to 2 SATA Power Connector Cable (50cm) (5V Output, Works with USB 3.1 Type C or GX16-5.5/2.5 Cable to Power SSD) and PCI Bracket with two port for 5.5/2.5 DC Jack Input. Enable easy internal wiring for PPA card and SSD power. No extra drilling on the PC case needed!
