HDPLEX 2nd Gen H5 Fanless Chassis

$298.00

Stock Status USA : In Stock Batch · Germany : In Stock

NanoATX Power Supply

Linear Power Supply

Quantity:

Have Question About this Product?

HDPLEX 2nd Gen H5 Enjoys Free Shipping Worldwide

Stock Status USA : In Stock · Germany : In Stock

Technical Specifications

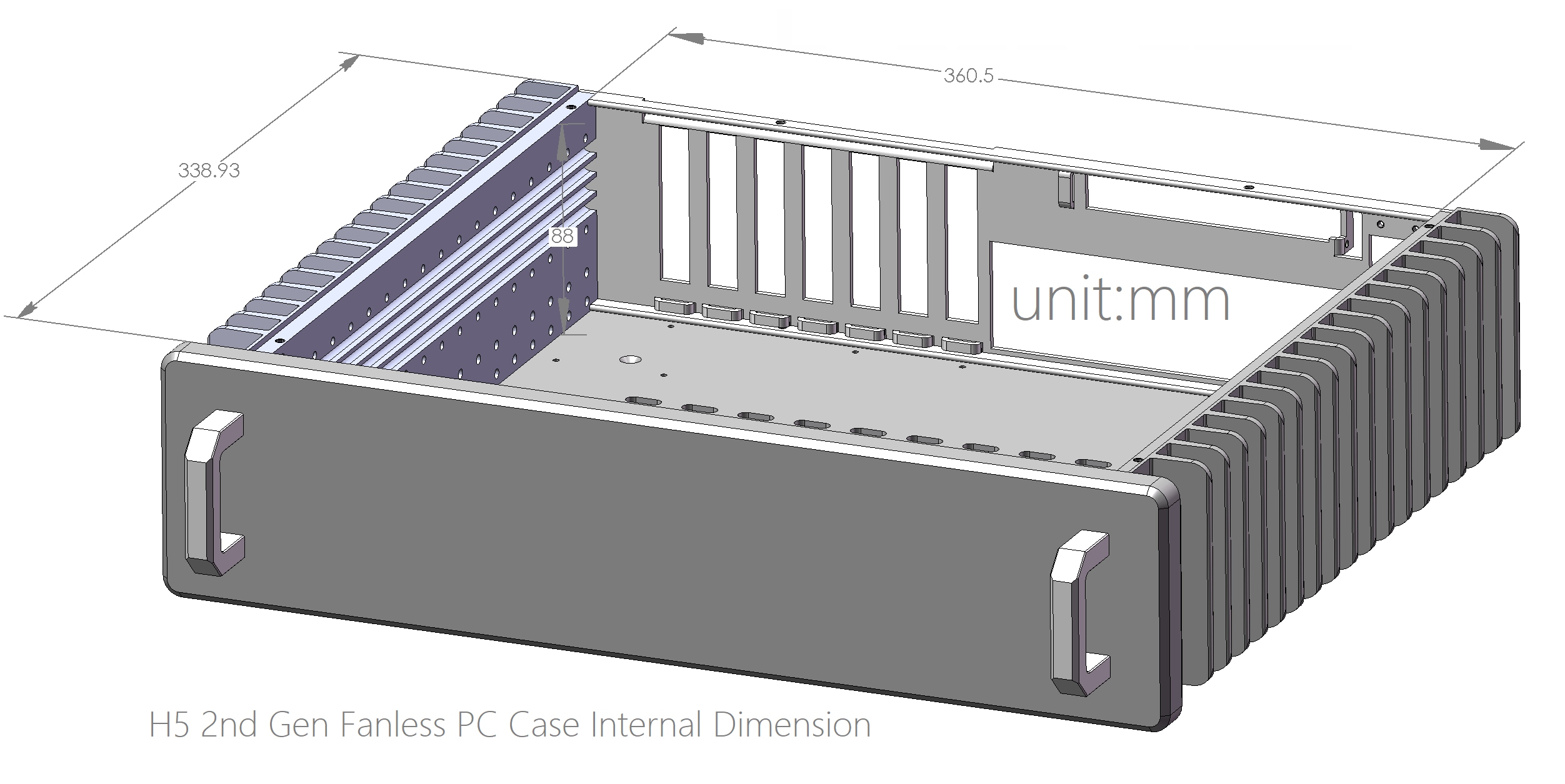

HDPLEX 2nd Gen H5 Fanless Chassis Dimensions
H5 Dimension Front View

HDPLEX 2nd Gen H5 Fanless Chassis Material and Color

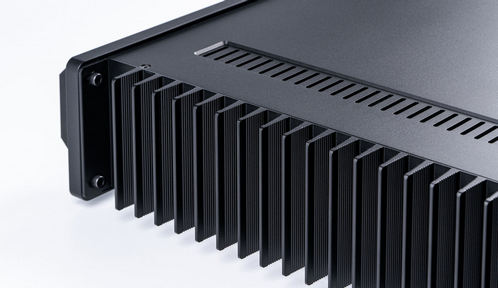

Material: 6063T Alluminum Alloy Weight:8kg 2.5mm Top/Bottom Plate::9mm Side Panel

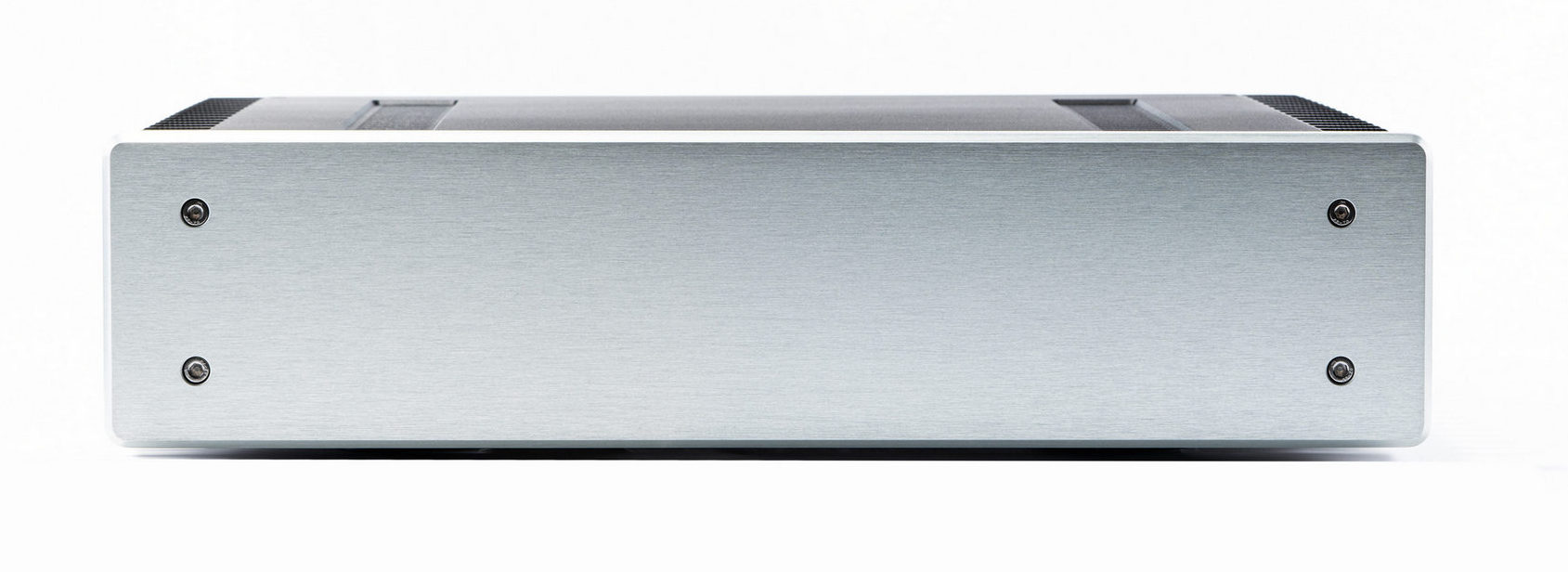

	15mm Brushed Aluminum Faceplate Brushed aluminum faceplate cost 3X of a sand blast faceplate.

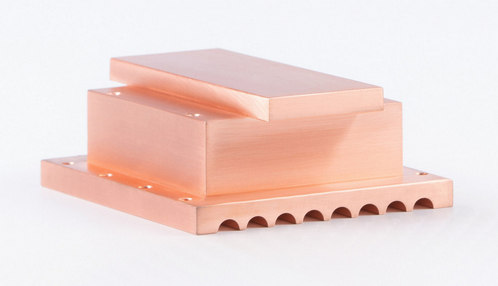

Heavy Duty 16oz Copper Base It is a crime to use aluminum base as the contact surface between CPU and heatpipe in a passive system. Copper thermal conductivity is 2X of aluminum.

HDPLEX H5 has two faceplate color choices: Black and Silver. The H5 body is black only.

HDPLEX H5 Silver

HDPLEX 2nd Gen H5 Chassis Motherboard Compatibility

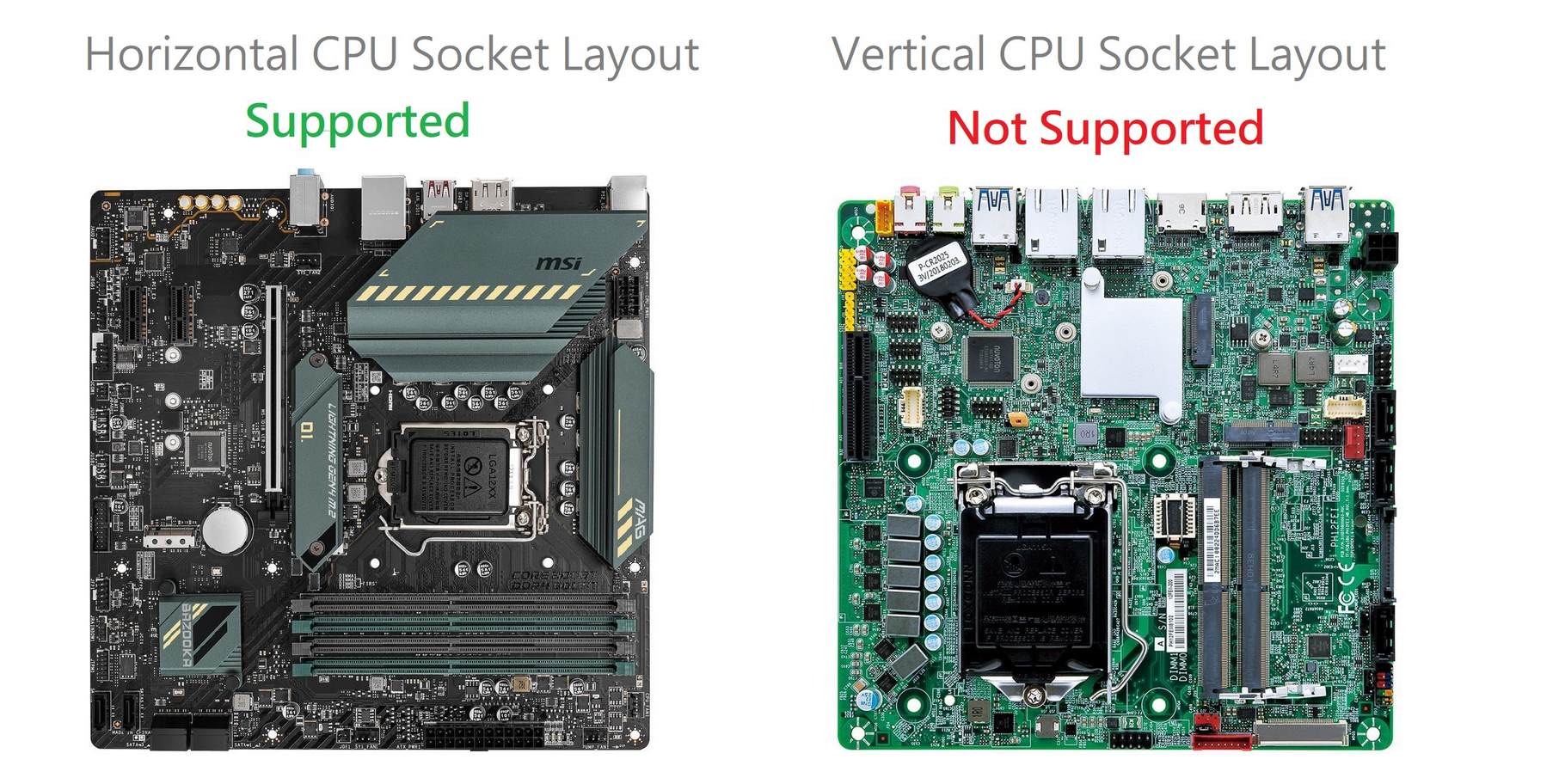

HDPLEX 2ng Gen H5 supports ATX,microATX, and mini-ITX motherboard. The tall copper base and elevated copper heatpipe path enable H5 to be compatible with most motherboard. Please see Hard Compatibility page for motherboard support list. Not all supported motherboards are listed. You could email us for confirmation of compatibility.

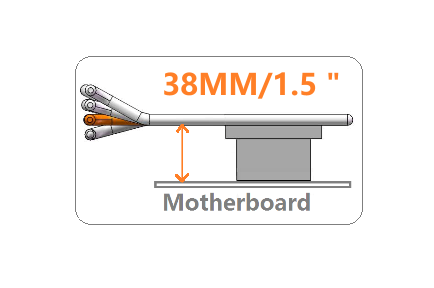

CPU Heatsink System clearance from motherboard Top surface

Internal Power Supply Options for HDPLEX 2nd Gen H5 Fanless HTPC Chassis

HDPLEX 2nd Gen H5 fanless HTPC chassis takes a bigger step forward and supports rich variety of internal power supply options including ATX/SFX/FlexATX power supplies.

We have developed a multipurpose rack to support internal mounting of ATX,SFX,Flex form factor power supply. A 45cm length AC extension cord with 90 degree angle IEC C14 connector is also included.

H5 also supports HDPLEX newly developed internal 160W AC-DC adapter with active PFC to work with HDPLEX 160W DC-ATX or 400W AC-DC adapter+HDPLEX HiFi 400W DC-ATX converter. These two HDPLEX nanoATX combo can achieve >88% efficiency thanks to active PFC and are also 100% silent and fanless.

Motherboard Form Factor	Multipurpose Rack(for ATX/SFX/FlexPSU) and Internal AC Extension Cord are included in the H5 package
Motherboard Form Factor	HDPLEX 160W AC/DC+160W DC-ATX Combo	HDPLEX 160W AC/DC+400W DC-ATX Combo	HDPLEX 400W AC/DC+400W DC-ATX Combo	ATX Power Supply	SFX Power Supply	FlexATX Power Supply
ATX/microATX (width>21.5cm/8.45")	Yes	Yes	Yes	No	No	Yes
ATX/microATX (width lt 21.5cm/8.45")	Yes	Yes	Yes	No	Yes	Yes
mini-ITX	Yes	Yes	Yes	Yes	Yes	Yes

Linear Power Supply Options for HDPLEX 2nd Gen H5 Fanless HTPC Chassis

HDPLEX 2nd Gen H5 fanless HTPC chassis is designed together with HDPLEX 400W ATX linear power supply to achieve the best CAPS platform targeting at computer audio customers.

To eliminate extra components in the power delivery chain, HDPLEX have developed ATX modular bridge input board to enable HDPLEX 400W ATX linear power supply directly connecting to motherboard and HDD. No more DC-ATX converter needed.

HDPLEX H5 also supportS HDPLEX 200W linear power supply + 400W HiFi DC-ATX converter for low power systems.

Motherboard Form Factor	ATX Modular Output Bridge Board comes with HDPLEX 400W ATX Linear Power Supply
Motherboard Form Factor	HDPLEX 200W Linear Power Supply +400W HiFI DC-ATX Combo	HDPLEX 400W ATX Linear Power Supply
ATX	Yes	Yes
microATX	Yes	Yes
mini-ITX	Yes	Yes

External Power Supply Options for HDPLEX 2nd Gen H5 Fanless HTPC Chassis

HDPLEX 2nd Gen H5 fanless computer chassis inherits the versatile power adapter plate from previous generation and supports the usual 5.5/2.5 self-lock DC jack for third party soluton such as PicoPSU, 7.4*5.0 DC coonector popular on 19V laptop adapters and used by HDPLEX 160W/400W DC-ATX converters, and C14 AC/IEC connector.

The HDPLEX ATX modular bridge input board designed for 400W ATX linear PSU also creates an interesting possibility in which user could place a standard ATX modular power supply outside the H5 case. This scenario has two advantages: removes a major heat source inside the case and supports any size motherboard for H5 fanless HTPC chassis.

Motherboard Form Factor	HDPLEX H5 chassis supports 5.52.5, 7.45.0, GX16-2 DC jack, ATX Modular Input board, and C14 IEC AC connector.
Motherboard Form Factor	ATX Modular Power Supply+HDPLEX Modular Bridge Input Board	External AC Adapter+HDPLEX 160W DC-ATX	External AC Adapter+HDPLEX HiFi 400W DC-ATX	External AC Adapter+PicoPSU/Third Party DC-ATX Solution
ATX	Yes	Yes	Yes	Yes
microATX	Yes	Yes	Yes	Yes
mini-ITX	Yes	Yes	Yes	Yes

HDPLEX 2nd Gen H5 Fanless HTPC Chassis Hard Drive Support

We have developed a special HDD rack which could support 2x2.5" SSD/HDD and one 3.5" HDD at the same time. Each 2nd Gen H5 fanless HTPC chassis comes with two HDD racks. There are three HDD rack mounting positions .

Power Supply	This applies for ATX/microATX with width>21.5cm/8.45"
Power Supply	3.5"Hard Drive	2.5" Hard Drive/SSD
HDPLEX 160W/400W AC-DC+400W DC-ATX	1/1/2	2/4/4
HDPLEX 160W AC-DC+160W DC-ATX/FlexATX PSU	2	4
HDPLEX Linear PSU/External PSU	2	4

Power Supply	This applies for ATX/microATX with width<=21.5cm/8.45"
Power Supply	3.5"Hard Drive	2.5" Hard Drive/SSD
HDPLEX 160W/400W AC-DC+400W DC-ATX	2	4
HDPLEX 160W AC-DC+160W DC-ATX/FlexATX PSU	2	4
ATX/SFX Power Supply (Installed Internally)	1/1/2	2/4/4
HDPLEX Linear PSU/External PSU	2	4

HDPLEX 2nd Gen H5 Chassis PCI Express Expansion Slot

HDPLEX 2nd Gen H5 Fanless HTPC Chassis Side I/O Port

HDPLEX 2nd Gen H5 Fanless HTPC Chassis Customization Options

HDPLEX 2nd Gen H5 fanless HTPC chassis is the first and only HTPC case which offer customized brushed aluminum power button and faceplate options to users. This allow you to create a more personalized PC case and become a truly stand out/unique centerpiece in your entertainment hub . We have 3U rackmount faceplate for H5.

HDPLEX 2nd Gen H5 Fanless HTPC Chassis Customization Options

The engineering template for HDPLEX H5 power button and faceplate could be downloaded here (3D and 2D).

Learn more about ordering customized faceplate.

HDPLEX 2nd Gen H5 Chassis CPU Heatsink System Compatibility

HDPLEX flagship passive eight-heatpipe CPU heatsink system is designed for H5 fanless HTPC chassis and supports lastest Intel/AMD CPU with MAX 95W TDP . Please find supported CPU list below. (Updated:June. 20th 2018)

Intel CPU Support List

Intel Coffee Lake/Kaby Lake/Skylake - Socket LGA1151

Core i7

8086K,8700k,8700,8700T,7700K,7700,7700T,i7-6700K,i7-6700,i7-6700T,

Core i5

8600k,8600,8600T,8500,8500T,8400,8400T,7600K, 7600, 7600T, 7500, 7500T, 7400, 7400T,i5-6600K,i5-6600,i5-6600T,i5-6500,i5-6500T,i5-6400,i5-6400T

Core i3 and Pentium/Celeron

8350k,8300,8300T,8100,8100T,G5600,G5500,G5500T,G5400,G5400T,G4920,G4900,G4900T 7350K, 7320, 7300, 7300T, 7100, 7100T, 7101E, 7101TE, G4620, G4600, G4600T, G4560, G4560T, G3950, G3930, G3930T, 6320, 6300, 6100, 6300T, 6100T, 6098P, G4520, G4500, G4500T, G4400, G4400T, G4400TE, G3920, G3900, G3900TE, G3900T

Intel Broadwell - Socket LGA1150

Core i7

i7-5775R,i7-5775C

Core i5

i5-5675R,i5-5675C,i5-5575R

Intel Haswell - Socket LGA1150

Core i7

i7-4765T,i7-4770,i7-4770k,i7-4770R,i7-4770S,i7-4770T,i7-4771,i7-4785T,i7-4790,i7-4790K,i7-4790S,i7-4790T

Core i5

i5-4670,i5-4670K,i5-4670R,i5-4670S,i5-4670T,i5-4690,i5-4690K,i5-4690S,i5-4690T,i5-4570,i5-4570R,i5-4570S,i5-4570T,i5-4590,i5-4590S,i5-4590T,i5-4460T,i5-4460S,i5-4460 ,i5-4440S,i5-4440,i5-4430S,i5-4430

Core i3

i3-4330,i3-4330T,i3-4340,i3-4350,i3-4350T,i3-4360,i3-4360T,i3-4370,i3-4370T,i3-4170,i3-4170T,i3-4160,i3-4160T,i3-4150,i3-4150T,i3-4130,i3-4130T

Intel Ivy Bridge - Socket LGA1155

Core i7

i7-3770,i7-3770K,i7-3770S,i7-3770T

Core i5

i5-3550,i5-3550S,i5-3570,i5-3570K,i5-3570S,i5-3570T,i5-3450,i5-3450T,i5-3450S,i5-3470,i5-3470T,i5-3470S,i5-3475S,i5-3330,i5-3330T,i5-3330S,i5-3340,i5-3340S,i5-3350P

Core i3

i3-3210,i3-3220,i3-3220T,i3-3225,i3-3240,i3-3240T,i3-3245,i3-3250,i3-3250T

Intel Sandy Bridge - Socket LGA1155

Core i7

i7-2770K,i7-2600,i7-2600k, i7-2600S

Core i5

i5-2500,i5-2500S,i5-2500T,i5-2500K,i5-2550K,i5-2400,i5-2400S,i5-2400T,i5-2405S,i5-2450P,i5-2300,i5-2310,i5-2320,i5-2390T,i5-2380P,

Core i3

i3-2100,i3-2100T,i3-2102,i3-2120,i3-2120T,i3-2130,i3-2105,i3-2125

Xeon,Pentium,and Legacy Socket

Xeon

Xeon E3-12xx v3-LGA1150 Haswell WS,Xeon E3-12xx v2-LGA1155 Ivy Bridge,Xeon E3-12xx -LGA1155 Sandy Bridge

Pentium

G3470,G3460T ,G3460 ,G3450T ,G3450 ,G3440T ,G3440 ,G3430 ,G3420T , G3420 ,G3260T ,G3260 ,G3258 ,G3250T ,G3250 ,G3240T ,G3240 ,G3220T ,G3220 ,J2900 ,J2850 ,G2140 ,G2130 ,G2120T ,G2120 ,G2100T ,G2030T ,G2030 ,G2020T ,G2020 ,G2010,etc,.

Legacy Socket

LGA775 and LGA1156

AMD CPU* Support List

AMD Ryzen AM4 and Ryzen APU

Ryzen 7 1800X,Ryzen 7 1700X,Ryzen 7 1700, Pro 1700,Ryzen 5 1600X,Ryzen 5 1600, Ryzen 5 1500X,Ryzen 5 1400,Ryzen 3 1300X,Pro 1300,1200,Pro 1200,Ryzen 3 2200GE,Ryzen 3 Pro 2200GE,2200G,Pro 2200G,Ryzen 5 2400GE,Pro 2400GE,2400G,Pro 2400G

AMD Kaveri-Socket FM2+

Athlon X2 450,Athlon X4 840,Athlon X4 860K,A4 PRO-7350B,A6-7400K,A6 PRO-7400B,A8-7600,A8 PRO-7600B, A8-7650K,A10-7700K,A10-7800,A10 PRO-7800B,A10-7850K,A10 PRO-7850B,A10-7870K

AMD Richland-Socket FM2

Sempron X2 250 Athlon X2 350 Athlon X2 370K Athlon X4 750 A4-4000 A4-4020 A4-6300 A4-6300B A4-6320 A4-6320B A4-7300 A4 PRO-7300B A6-6400K A6-6400B A6-6420K A4-6420B A8-6500T A8-6500 A8-6500B A10-6700T A10-6700

Legacy Socket

AMD AM2+/AM3/FM1 Socket

*HDPLEX Heatsink System could fully utilize eight heatpipe for AMD Socket with simple modification

HDPLEX Passive Video Card Heatsink System Compatibility

HDPLEX passive eight-heatpipe video card/GPU heatsink system is designed for H5 fanless HTPC chassis and supports four mounting patterns. The HDPLEX passive video card system supports low-middle range video card with MAX 95W TDP . Video card and mounting pattern table below is for reference only. Whether a video card can be passively cooled by HDPLEX system is decided by its TDP, mounting pattern, and its component layout. Some video card onboard component might conflict with the copper base of the HDPLEX GPU heatsink sytem even if the mounting patter matches.

Video cards confirmed to be compatible with HDPLEX Passive GPU Heatsink system:

EVGA GeForce GTX 950 2GB SC GAMING, 02G-P4-2951-KR
Zotac GeForce GTX 950 Graphics Card ‑ 2 GB GDDR5
EVGA GeForce GTX 1060 SC GAMING, 06G-P4-6163-KR, 6GB GDDR5, ACX 2.0 (Single Fan)
AMD RX460
Gigabyte Radeon RX 560 GAMING OC 4G REV 2.0

Video Card Mounting Pattern Table (Updated:Aug 15th 2015)

43*43mm Mounting Pattern

Nvidia GT240,Nvidia 8500/8600 Series, Nvidia 7300/7300 Series,Nvidia 750Ti ATI HD5600/5700 Series, ATI X2600 Series, ATI X1600/X1650 Series

53*53mm Mounting Pattern

Nvidia GTS 450, Nvidia GTS 250, Nvidia 9800/9600/9500GT, Nvidia 8800GT/GTS, Nvidia 7600/7800/7900/7950 Series, Nvidia 6800 Series， ATI HD 3800/4800/5500/5800 Series

58*58mm Mounting Pattern

NVIDIA GeForce GTX 570/580,NVIDIA GeForce GTX 680,GTX950,GTX960,GTX980,GTX1050,GTX1060

61*61mm Mounting Pattern

NVIDIA GeForce GTX 260/270/280

HDPLEX H5 Fanless HTPC Chassis Motherboard Compatible List for Intel CPU
(Updated:Jun 20th 2018)

Intel LGA 1151-Coffee/Kaby Lake/Skylake

ATX

ROG STRIX Z370-E,ROG MAXIMUS X HERO,PRIME Z370-A,ROG MAXIMUS X HERO,ASUS TUF B360-Pro Gaming,ROG STRIX B360-G GAMING,ROG STRIX B360-G GAMING,ROG STRIX Z370-G GAMING (WI-FI AC),ROG STRIX B360-F GAMING,ROG STRIX H370-F GAMING ,ROG STRIX B360-H GAMING,TUF Z370-PLUS GAMING,TUF Z370-PRO GAMING,PRIME H270-PLUS/CSM, ROG MAXIMUS IX APEX, ROG STRIX H270F GAMING, PRIME Z270-P, ROG STRIX B250F GAMING, PRIME H270-PRO, PRIME B250-PLUS, ROG MAXIMUS IX CODE, ROG STRIX Z270H GAMING, PRIME Z270-K, ROG STRIX Z270E GAMING, ROG STRIX Z270F GAMIN, TUF Z270 MARK 2, ROG MAXIMUS IX FORMULA,Z170 PRO GAMING,Z170-A,Z170-AR,Z170-DELUXE,Z170-K,Z170-P,Z170-P D3,B150-PLUS D3,H170-PRO/ CSM,H170-PLUS D3

MicroATX

PRIME H370M-PLUS,PRIME H310M-E,PRIME H310M-D,PRIME B360M-A,PRIME H310M-K,H270M BAZOOKA, B250M MORTAR, B250M BAZOOKA, Z270 SLI PLUS,PRIME B250M-A, PRIME B250M-K, PRIME B250M-PLUS, PRIME Z270M-PLUS, Z270 SLIZ170M-E D3,Z170M-PLUS,H110M-A,H110M-C/CSM,H110M-K D3,H110M-A D3,B150M-C/CSM,B150M-A,B150M-PLUS D3,B150M-C D3,B150M-A D3,H170M-E D3

ITX

ROG STRIX H370-I GAMING,ROG STRIX Z370-I GAMING,ROG STRIX Z270I,H170I-PLUS D3,ASUS H110I-PLUS/CSM,H110I-PLUS D3/CSM

Intel LGA 1150-Broadwell/Haswell

ATX

Z97-DELUXE(NFC & WLC),SABERTOOTH Z97 MARK 1,SABERTOOTH Z97 MARK 2 ,ASUS Z97-PRO GAMER ,SABERTOOTH Z97 MARK 2/USB 3.1,Z97-E/USB3.1,Z97-A/USB3.1 Z97-PRO(Wi-Fi ac)/USB 3.1,Z97-DELUXE/USB 3.1,Z97-E,Z97-P,Z97-WS,Z97-K/CSM,Z97-C,H97-Plus,Z97-PRO(Wi-Fi ac),Z97-A,Z97-PRO,Z97-DELUXE,MAXIMUS VI EXTREME,P9D WS,Z87-DELUXE/ DUAL,Z87-WS,Z87-EXPERT,Z87-DELUXE,Z87-PLUS,Z87-PRO,Z87-K,Z87-C,Z87-A

MicroATX

GRYPHON Z97,B85M-D PLUS,B85M-G R2.0,MAXIMUS VII GENE,H97M-E/ CSM,H97M-PLUS,Z97M-PLUS,CS-B,VANGUARD B85,H81M-D PLUS,H81M-D,H87M-PRO,H81M-C/ CSM,H81M-A,H81M-PLUS,B85M-E/ CSM,Q87M-E/ CSM,MAXIMUS VI GENE,H87M-PLUS/ CSM,B85M-G,H87M-E,Z87M-PLUS

ITX

Z97I-PLUS,H97I-PLUS,H81I-PLUS,H87I-PLUS

Intel LGA 1155-Sandy Bridge/Ivy Bridge

ATX

P8Z77-V PREMIUM,P8C WS,P8Z77-V LX,P8Z77 WS,P8Z77-V DELUXE,P8B WS

MicroATX

H61M-F,H61M-C,B75M-A,H61M-E,H61M-A,H61M-A/ USB3,H61M-PLUS,P8H61-M LX3 R2.0,P8H61-M LX3 PLUS R2.0,P8H77-M PRO,P8B75-M LX PLUS,P8Q77-M/ CSM,P8H61

Intel LGA 1151-Coffee/Kaby Lake/Skylake

ATX

Z370 Extreme4,Z370 Killer SLI/ac,Z370 Taichi,Z370 Killer SLI,Z370 Pro4,Fatal1ty Z370 Professional Gaming i7,Fatal1ty Z370 Gaming K6,Z270 Taichi,H370M Pro4,Fatal1ty H370 Performance,H370 Pro4,Fatal1ty B360 Gaming K4,B360 Pro4,Z270 Extreme4, Z270 Killer SLI/ac, Z270 Killer SLI, Z270 Pro4, Fatal1ty Z270 Professional Gaming i7, Fatal1ty Z270 Gaming K6, Fatal1ty Z270 Gaming K4, H270 Pro4, Fatal1ty B250 Gaming K4, B250 Pro4Z170 OC Formula,Z170 Extreme7+,Z170 Extreme6+,Z170 Extreme6,Z170 Extreme4+,Z170 Extreme4,Z170 Pro4/D3,Z170 Pro4,Z170 Pro4S,Fatal1ty Z170 Gaming K6+,Fatal1ty Z170 Gaming K6,Fatal1ty Z170 Gaming K4/D3,Fatal1ty Z170 Gaming K4,H170 Pro4/D3,H170 Pro4/Hyper,H170 Pro4S,H170 Combo,H170A-X1/3.1,H170A-X1,B150 Gaming K4/Hyper,B150 Gaming K4,B150 Gaming K4/D3,B150 Pro4/D3,B150 Pro4/3.1,B150 Combo,B150A-X1

MicroATX

Z370M Pro4,Z270M Pro4,Fatal1ty B360M Performance,B360M Pro4,B360M-HDV, H310M-HDV/M.2,H310M-G/M.2,H310M-HDVP,H310M-HDV,H310M-DGS,Fatal1ty H270M Performance, H270M Pro4, Fatal1ty B250M Performance, B250M Pro4, B250M-HDVZ170M Pro4,Z170M Pro4S,H170M Pro4S,B150M Pro4V, B150M Pro4,B150M Pro4S,B150M Pro4S/D3,B150M-PIO,B150M-HDV,B150M-HDV/D3,B150M-HDS,B150M Combo-G,H110M-HDV,H110M-HDV/D3,H110M-HDVPc,H110M-HDS,H110M-DGS,H110M-DVP,H110M-DVS/D3,H110M-GL/D3,H110M-PIO,H110M Combo-G

ITX

Fatal1ty Z370 Gaming-ITX/ac,Z370M-ITX/ac,H370M-ITX/ac,B360M-ITX/ac,H310M-ITX/ac,Z270M-ITX/ac, Fatal1ty Z270 Gaming-ITX/ac, H270M-ITX/ac,Fatal1ty Z170 Gaming-ITX/ac,Z170M-ITX/ac,H170M-ITX/ac,H170M-ITX/DL,B150M-ITX,B150M-ITX/D3,H110M-ITX/ac,H110M-ITX,H110M-ITX/D3,H110M-I

Intel LGA 1150-Broadwell/Haswell

ATX

Z97 OC Formula Z97M OC Formula Z97 Extreme9 Z97 Extreme6/ac Z97 Extreme6/3.1 Z97 Extreme6 Z97 Extreme4/3.1 Z97 Extreme4 Z97 Extreme3 Z97 Pro4 Z97 Anniversary,Z97 Pro3 Fatal1ty Z97 Professional Fatal1ty Z97X Killer/3.1 Fatal1ty Z97X Killer Fatal1ty Z97 Killer/3.1 Fatal1ty Z97 Killer Fatal1ty H97 Killer Fatal1ty H97 Performance H97 Pro4,H97 Anniversary Z87 OC Formula/ac Z87 OC Formula Z87 Extreme11/ac Z87 Extreme9/ac Z87 Extreme6/ac,Z87 Extreme6 Z87 Extreme4/TB4 Z87 Extreme4 Z87 Extreme3 Z87 Pro4 Z87 Pro3 Fatal1ty Z87 Professional Fatal1ty Z87 Killer Fatal1ty H87 Performance H87 Pro4,Fatal1ty B85 Killer B85 Anniversary B85 Pro4,H81 Pro BTC

MicroATX

H87M Pro4,H87M,Z97M Pro4,Z97M Anniversary,Fatal1ty Z97M Killer,H97M Pro4,H97M Anniversary,H97M ,Z87M OC Formula,Z87M Extreme4 ,Z87M Pro4,H87M Pro4/ASM,Q87M vPro/ASM Q87M vPro B85M Pro4/ASM B85M Pro4 B85M-DGS,B85M-HDS R2.0 B85M-HDS B85M-GL,B85M BTC,B85M,B85M-ITX,H81M BTC H81M-G,H81M-GL H81M-HDS R2.0 H81M-HDS H81M-DGS R2.0 H81M-DGS H81M-HG4,H81M-DG4 H81M-VG4 R2.0 H81M-VG4,H81M/ASM,H81M

ITX

Z97M-ITX/ac,Z97E-ITX/ac,H97M-ITX/ac ,Z87E-ITX,H87M-ITX,H81M-ITX/WiFi,H81M-ITX

Intel LGA 1155-Sandy Bridge/Ivy Bridge

ATX

Z77 Extreme11 Z77 Extreme9 Z77 OC Formula Z77 Extreme6/TB4 Z77 Extreme6 Z77 Extreme4 Z77 Extreme4-M Z77 Extreme3 Z77 Pro4 Fatal1ty Z77 Professional Z77 Pro3 Fatal1ty Z77 Performance Z75 Pro3 B75 Pro3 Z68 Extreme7 Gen3 Fatal1ty Z68 Professional Gen3 Z68 Extreme4 Gen3 Z68 Extreme3 Gen3 Z68 Extreme4 Z68 Pro3 Gen3 Z68 Pro3 Fatal1ty P67 Professional Fatal1ty P67 Performance P67 Extreme6 P67 Extreme4 Gen3 P67 Extreme4 P67 Pro3 P67 Pro3 SE H61DE/S3

MicroATX

Z77M Z77 Pro4-M Fatal1ty Z77 Professional-M H77 Pro4/MVP H77 Pro4-M H77M Q77M vPro B75 Pro3-M B75M-DGS R2.0 B75M-DGS B75M-GL R2.0 B75M-GL B75M R2.0 B75M Z68 Pro3-M Z68M/USB3 H67M-GE/HT H67M-GE H67M H61M/U3S3 H61M-DG3/USB3 H61iCafe H61M-GE H61M-PS4 H61M-DP3/ASM H61M-DGS R2.0 H61M-DGS H61M-HVS H61M-S H61M-VG4 H61M-VG3 H61M-VS4 H61M-VS3 H61M-VS H61M-IDE

ITX

Z77E-ITX H77M-ITX B75M-ITX Z68M-ITX/HT H67M-ITX/HT H67M-ITX H61MV-ITX H61M-ITX

Intel LGA 1151-Coffee/Kaby Lake/Skylake

ATX

Z370GT7,Z370GT6,Z270GT9, Z270GT8, Z270GT6, Z270GT4, B360MHD PRO,H310MHD PRO,B360GT5S,B360GT5S,B250GT5, B250GT3, Hi-Fi B250S1, TB250-BTCGAMING, Z170X GAMING Z170W GAMING Z170T,GAMING H170T,Hi-Fi H170S3H.B150GT5,Hi-Fi B150Z5,

microATX

H170GT3,Hi-Fi H170Z3,Hi-Fi B150S5,Hi-Fi B150S1 D4,Hi-Fi B150S1,H110MDS2 PRO D4,H110MH PRO D4,H110MD PRO D4,H110MG PRO D4,H110MD PRO

Intel LGA 1150-Broadwell/Haswell

ATX

GAMING Z97X,GAMING Z97W,Hi-Fi Z97Z7,Hi-Fi Z97WE,Hi-Fi Z87W 3D,Hi-Fi Z87X 3D,Hi-Fi Z87W,Hi-Fi B85Z5,Hi-Fi B85S1,Hi-Fi B85Z,Hi-Fi B85S2G,Hi-Fi B85S 3D,Hi-Fi B85S2,Hi-Fi B85W,TB85,Hi-Fi H87S 3D,Hi-Fi H87S3+,B85MG,Hi-Fi H81S2

MicroATX

H81MG,H81M-IDE,H81MDC-LSP,H81MGC,,H81A,H81MHP2,H81MGP2,H81MDC,H81MHC,H81MHP,H81MLC,Hi-Fi B85S3,Hi-Fi B85S3+,Hi-Fi B85S3E,Hi-Fi K1-I,H81S3,H81MDV5,H81MHV3,H81MDV3,H81MLV3,H81MGV3,H81MHV3L

ITX

Hi-Fi B85N 3D

Intel LGA 1155-Sandy Bridge/Ivy Bridge

ATX

Hi-Fi P61S2,TH61A,H61B,TP67XE,TP67B+,TZ68K+,TZ68A+,TP75,Hi-Fi H77S,T77,TZ75A,TZ75B,Hi-Fi Z77X,TZ77XE4,TZ77XE3,TZ77A,TZ77B,

MicroATX

Hi-Fi H61S3,HiFi H61S3L, TP61A,TH61U3+,H61MGP, H61MGV3, H61MLC2,H61MGV, H61MHV,H61MGE,H61MLV2, H61MU3B,H61MLV,H61MLC,H61MGC, H61MHB,H61MLB ,H61MU3 , H61ML , H61MH, H61MLV3, TH67A+,TH67B,TH67XE,TH67+,H67MU3,H67MH,Hi-Fi B75S3E,B75MU3B, B75MU3+, H77MU3,TZ77MXE

ITX

TH61 ITX,H61IL

Intel LGA 1151-Coffee/Kaby Lake/Skylake

ATX

Z370-LIGHTSABER,Z270-LIGHTSABER,Z170-CLAYMORE (V1.0)

microATX

Z370-LIGHTSABER,H110I-C4P,H110M-C33,H110M-C3D,H110M-C3V,H110M-C43,H110M4-C21,H110M4-C23,H110M4-C2H,H110M4-C33,H110M4-C3D,H110M4-C3V,H110M4-C43,B150M-P73,B150M4-C3V,B150M4-C43

ITX

Z270H4-I, H110I-C33_C3D,Z170IU-C43

Intel LGA 1150-Broadwell/Haswell

ATX

Z97-MACHINE Z87H3-A2X EXTREME ,Z87H3-A2X GOLDEN ,Z87H3-A3X ,Z87H3-A4 ,Z87H3-A4 ,H81H3-A3 ,B85H3-A3

MicroATX

Z97-PK ,H87H3-M ,H87H3-M3 ,H87H3-M4 ,H87H3-TI ,Z87H3-A2X EXTREME ,Z87H3-A2X GOLDEN ,Z87H3-A3X ,Z87H3-A4 ,Z87H3-A4 ,Z87H3-M ,H81H3-M3 ,H81H3-M3S/TPM ,H81H3-M4,H81H3-M5 ,H81H3-M7 ,H81H3-MV ,H81H3-TI2 ,B85H3-M ,B85H3-M3 ,B85H3-M4 ,B85H3-M4 ,B85H3-M6 ,B85H3-M7 ,B85H3-M9 ,Q87H3-M5 ,Q87H3-M6

ITX

Z97I-DRONE,H97I-DRONE,H81H3-I/HDMI ,H81H3-I/DVI

Intel LGA 1155-Sandy Bridge/Ivy Bridge

ATX

H61H2-A ,H61H2-A2 Deluxe

MicroATX

H77H2-M ,B75H2-M2 ,B75H2-M3 ,H61H2-M ,H61H2-M10 ,H61H2-M12 ,H61H2-M13 ,H61H2-M16 ,H61H2-M17 ,H61H2-M19 ,H61H2-M2 ,H61H2-M3 ,H61H2-M4 ,H61H2-M5 ,H61H2-M6 ,H61H2-M7 ,H61H2-M8 ,H61H2-M9 ,H61H2-MV

ITX

H61H2-I,H61H2-I2 ,H61H2-I3 ,H61H2-I5

Intel LGA 1151-Coffee/Kaby Lake/Skylake

ATX

Z370 AORUS Gaming 7,Z370 AORUS Gaming 5,Z370 AORUS Ultra Gaming,Z370 AORUS Gaming 3,Z370 AORUS GAMING WIFI,Z370XP SLI,Z370 HD3P,Z370 HD3,Z370 HD3-OP (rev.1.0),Z370P D3,H370 AORUS GAMING 3 WIFI (rev.1.0),H370 AORUS GAMING 3 (rev.1.0),H370 HD3 (rev.1.0),B360 AORUS GAMING 3 WIFI (rev.1.0) ,B360 AORUS GAMING 3 (rev.1.0),B360 HD3P (rev.1.0),B360 HD3 (rev.1.0),H310 D3 (rev.1.0),GA-Z270X-Gaming 9, GA-Z270X-Gaming 8, GA-Z270X-Gaming 7, GA-Z270X-UD5 GA-Z270X-Gaming 5, GA-Z270MX-Gaming 5, GA-Z270X-Gaming K7, GA-Z270-Gaming K3, GA-Z270X-UD3, GA-Z270X-Ultra Gaming, GA-Z270XP-SLI, GA-Z270X-Gaming K5, GA-Z270M-D3H, GA-Z270-HD3P, GA-Z270P-D3, GA-Z270-HD3, GA-H270-Gaming 3, GA-H270-HD3, GA-Gaming B8, GA-B250-HD3,GA-Z170X-Gaming 3-EU,GA-Z170X-Gaming 5-EU,GA-Z170X-Gaming 7-EU,GA-Z170-HD3,GA-Z170-D3H,GA-Z170-HD3 GA-Z170N-Gaming 5,GA-Z170N-WIFI,GA-Z170X-Gaming GT, GA-Z170X-UD3 GA-Z170X-Gaming 7,GA-Z170X-UD5,GA-Z170X-Gaming G1,GA-Z170X-Gaming 5,GA-Z170X-Gaming 3,GA-Z170XP-SLI,GA-Z170-HD3P,G1.Sniper B7,GA-H170-Gaming 3,GA-H170-Gaming 3,GA-H170-D3HP,GA-H170-D3H,GA-H170-HD3,GA-H170-HD3,GA-B150-HD3P,G1.Sniper M7,GA-B150-HD3,GA-B150-HD3,GA-P110-D3,GA-H110-D3,GA-X170-EXTREME ECC,GA-X150-PRO ECC,GA-X150-PLUS WS

MicroATX

H310M HD2 (rev.1.0),H310M DS2V (rev.1.0),H310M DS2 (rev.1.0),H310M S2H (rev.1.0),H310M S2P (rev.1.0),H310M S2V (rev.1.0),H310M S2 (rev.1.0),H310M H (rev.1.0),H310M A (rev.1.0),B360M AORUS GAMING 3 (rev.1.0),B360M D3H (rev.1.0),B360M DS3H (rev.1.0),B360M HD3 (rev.1.0),B360M D3V (rev.1.0),B360M D2V (rev.1.0),B360M D3P (rev.1.0),B360M GAMING HD (rev.1.0),B360M H (rev.1.0),B360N AORUS GAMING WIFI (rev.1.0),B360M D3H GSM (rev.1.0),H370M D3H (rev.1.0),H370M DS3H (rev.1.0),H370M D3H GSM (rev.1.0),GA-B250M-D3H, GA-B250M-DS3H, GA-B250M-HD3, GA-H270M-D3H, GA-H270M-DS3H,GA-Z170M-D3H,GA-Z170MX-Gaming 5,GA-H170M-DS3H,GA-H170M-HD3,GA-H170M-D3H,GA-H170M-D3H,GA-Q170M-MK,GA-Q170M-D3H,GA-B150M-D2V,GA-B150M-HD3,GA-B150M-DS3H,GA-B150M-D3H,GA-B150M-D3H,GA-B150M-D2V,GA-B150M-HD3,GA-B150M-D3V,GA-B150M-DS3H,GA-B150M-D3V GA-B150M-DS3P,GA-H110M-S2V,GA-H110M-S2PH,GA-H110M-S2,GA-H110M-DS2,GA-H110M-S2PV,GA-H110M-H,GA-H110M-DS2V,GA-H110M-S2V,GA-H110M-DS2V,GA-H110M-S2HP,GA-H110M-S2H,GA-H110M-S2H,GA-H110M-HD3,GA-H110M-H,GA-H110M-S2PH GA-H110M-A,GA-H110M-S2,GA-H110M-S2PV,GA-H110M-DS2,GA-X150M-PLUS,GA-X150M-PRO ECC

ITX

H370N WIFI (rev.1.0),B360N GSM (rev.1.0),B360N WIFI (rev.1.0),GA-Z370N WIFI,GA-Z270N-WIFI, GA-H270N-WIFI, GA-Z170N-Gaming 5,GA-Z170N-WIFI,GA-H170N-WIFI,GA-B150N Phoenix,GA-B150N Phoenix-WIFI,GA-B150N-GSM,GA-H110N

Intel LGA 1150-Broadwell/Haswell

ATX

GA-B85-HD3 ,GA-H81-D3 ,G1.Sniper B6 ,GA-Z97-HD3P ,GA-Z97-HD3 ,GA-H97-HD3 ,GA-Z97-HD3 ,GA-B85-HD3-A ,GA-H97-D3H ,GA-Z97-D3H ,GA-Z97X-UD5H ,GA-Z97X-SLI ,GA-Z97X-UD5H-BK ,GA-Z97X-Gaming 3 ,GA-Z97X-SLI ,GA-Z97X-UD3H ,GA-Z97X-UD3H-BK ,GA-Z97-D3H ,GA-Z97-HD3 ,GA-Z97X-UD5H ,GA-Z97X-UD5H-BK ,GA-Z97X-SOC Force LN2 ,GA-Z97X-Gaming G1 WIFI-BK ,GA-Z97X-SOC ,GA-Z97X-UD3H-BK ,GA-Z97X-UD7 TH ,GA-Z97MX-Gaming 5,GA-Z97X-Gaming GT ,G1.Sniper Z97 ,G1.Sniper Z5 ,GA-P85-D3 ,GA-H81.Amp-UP ,GA-H87-D3H ,GA-Z87X-UD5 TH

MicroATX

GA-H81M-H ,GA-H81M-S2H ,GA-B85M-HD3 ,GA-B85M-DS3H ,GA-B85M-Gaming 3 ,GA-H81M-HD3 .GA-Z97M-D3H ,GA-H97M-D3H ,GA-H97M-HD3 ,GA-H97-HD3 ,GA-B85M-D3H ,GA-H81M-H ,GA-H97M-D3H ,GA-H97M-HD3 ,GA-B85M-D3H ,GA-H81M-H ,GA-B85M-DS3H-A ,GA-B85M-HD3-A ,GA-H81M-S2H GSM ,GA-H97M-HD3 ,GA-Z97M-DS3H ,GA-B85M-D3V ,GA-H87M-D3H ,GA-Z87MX-D3H ,GA-H87M-HD3 ,GA-Q87M-D2H ,GA-Q87M-MK

ITX

GA-H97N-WIFI ,GA-Z97N-WIFI ,GA-H97N ,GA-Z97N-WIFI ,GA-H97N ,GA-H97N ,GA-B85N-WIFI ,GA-B85N Phoenix-WIFI ,GA-Z87N-WIFI ,GA-H87N-WIFI ,GA-H81N ,GA-B85N ,GA-Q87N

Intel LGA 1155-Sandy Bridge/Ivy Bridge

ATX

GA-P67A-UD7 ,GA-P67A-UD5 ,GA-P67A-UD4 ,GA-P67A-UD3P ,GA-P67A-UD3 ,GA-H67A-UD3H ,GA-P67A-UD4 ,GA-P67A-UD3P ,GA-P67A-UD3 ,GA-H67A-UD3H ,P67A-UD4-B3 ,GA-P67A-UD7-B3 ,GA-P67A-UD5-B3 ,GA-P67A-UD3P-B3 ,GA-P67A-UD3-B3 ,GA-P61-USB3-B3 ,GA-P67A-D3-B3 ,GA-P67X-UD3-B3 ,GA-Z68X-UD7-B3 ,GA-Z68X-UD5-B3 ,GA-Z68X-UD4-B3 ,GA-Z68X-UD3P-B3 ,GA-Z68X-UD3-B3 ,GA-Z68X-UD3H-B3 ,GA-Z68A-D3H-B3 ,GA-Z68A-D3-B3 ,GA-Z68XP-UD3 ,GA-Z68XP-UD3-iSSD ,GA-Z68AP-D3 ,GA-Z68XP-D3 ,GA-Z68P-DS3 ,GA-H61M-USB3-B3 ,GA-Z68XP-UD5 ,GA-Z68XP-UD4 ,G1.Sniper 2 ,GA-Z68X-UD3H-B3 ,GA-Z68A-D3H-B3 ,GA-Z68XP-UD4 ,GA-Z77X-D3H ,GA-P75-D3 ,GA-Z77X-UD3H .G1.Sniper M3 ,GA-Z77X-UD5H-WB WIFI

MicroATX

GA-H67MA-UD2H ,GA-H67MA-D2H ,GA-H67M-D2 ,GA-H67MA-UD2H , GA-H67MA-D2H ,GA-H67M-D2 ,GA-H67MA-UD2H-B3 ,GA-H67MA-D2H-B3 ,GA-H67M-D2-B3 ,GA-H61M-D2P-B3 ,GA-H61M-USB3-B3 ,GA-H67MA-USB3-B3 ,GA-H67MA-D2H-B3 ,GA-H67M-D2-B3 ,GA-Q67M-D2H-B3 ,GA-Z68MX-UD2H-B3 ,GA-Z68MA-D2H-B3 ,GA-H61M-S2V-B3 ,GA-H61M-S2-B3 ,GA-Z68M-D2H ,GA-H61M-S2P-B3 ,GA-H61M-S2H ,GA-H61M-DS2 ,GA-Z68MX-UD2H-B3 ,GA-Z68MA-D2H-B3 ,GA-H61M-DS2 ,GA-H77M-D3H ,GA-Z77MX-D3H ,GA-H77-DS3H ,GA-Z77-DS3H ,GA-B75M-D3H ,GA-B75M-D3V ,GA-H61MA-D3V

ITX

GA-H67N-USB3-B3 ,GA-H61N-USB3 .GA-Z77N-WIFI ,GA-B75N

DQ87PG,DB85FL,DQ77CP,DZ87KLT-75K,DH87MC,DH87RL,DQ77KB,DQ77MK,DB75EN,DH77DF,DH77EB,DH77KC,DX79SI,DX79SR,DX79TO,DZ75ML-45K,DZ77BH-55K,DZ77GA-70K,DZ77RE-75K,DZ77SL-50KDQ67EP,DQ67SWB3,DB75EN,DH67CF

NF9J,NC9S,NF9QU,NF9Q,NF9E,NF9A,NF9F,NC9FL,NC9F,NAF95-Q87,NAF93-Q77,NAF93-B75,NAF92-Q67,NMF95-Q87,NMF94RM-Q87,NMF95-H81,NMF93-Q77,NMF92-H61

Intel LGA 1151- Coffee/Kaby Lake/Skylake

ATX/mATX

Z370 GODLIKE GAMING,Z370 GAMING M5,Z370 GAMING PRO CARBON AC,Z370 GAMING PRO CARBON,Z370 KRAIT GAMING,Z370 GAMING PLUS,Z370 TOMAHAWK,Z370 SLI PLUS,Z370 PC PRO,Z370-A PRO,Z370M GAMING PRO AC,Z370M MORTAR,H370 GAMING PRO CARBON,H370 GAMING PLUS,B360 GAMING PRO CARBON,B360M BAZOOKA PLUS,Z370M GAMING PRO AC,B360M GAMING PLUS,H310M GAMING PLUS,H310M GAMING ARCTIC,Z370M MORTAR,H370M BAZOOKA,B360M MORTAR TITANIUM,,Z270 XPOWER GAMING TITANIUM, Z270 GAMING M7, Z270 GAMING M5, Z270 GAMING M3, H270 GAMING M3, B250 GAMING M3, Z270 GAMING PRO CARBON, Z270 KRAIT GAMING, Z270 GAMING PRO, H270 GAMING PRO CARBON, B250 GAMING PRO CARBON, B250 KRAIT GAMING, Z270 TOMAHAWK, H270 TOMAHAWK ARCTIC,Z270M MORTAR, H270M MORTAR ARCTIC, H270M MORTAR ARCTIC, B250M GAMING PRO, Z170A-G45 GAMING,Z170A GAMING M3,Z170A XPOWER GAMING TITANIUM EDITION,Z170A GAMING M7,Z170A GAMING M5,Z170A GAMING PRO,Z170A KRAIT GAMING,Z170 KRAIT GAMING,Z170A PC MATE,

ITX

Z370I GAMING PRO CARBON AC,B360I GAMING PRO AC,B360I GAMING PRO AC,H310I PRO,Z270I GAMING PRO CARBON AC, B250I GAMING PRO AC, H270I GAMING PRO AC,Z170I Gaming Pro AC

Intel LGA 1150-Broadwell/Haswell

ATX

Z97A GAMING 7,Z97A GAMING 9 ACK,Z97A GAMING 6,Z97I GAMING ACK,Z97 GAMING 9 ACK,Z97S SLI Krait Edition,Z97 XPOWER AC,Z97 MPOWER MAX AC,Z97 MPOWER,Z97 GAMING 9 AC,Z97 GAMING 7,Z97 GAMING 5,Z97 GAMING 3,Z97-GD65 GAMING,Z97-G45 GAMING,Z97 GUARD-PRO,Z97S SLI PLUS,Z97-G55 SLI,Z97 U3 PLUS,Z97 PC Mate,H97 GAMING 3,H97 GUARD-PRO,H97 PC Mate,Z87 MPOWER MAX AC,Z87-G43 GAMING,Z87-GD65 GAMING,Z87-G45 GAMING,Z87 XPOWER,Z87 MPOWER MAX,Z87 MPOWER,Z87 MPOWER SP,Z87-G55,Z87-G43,Z87-G41 PC Mate,H87-G43,B85-G41 PC Mate

MicroATX

Z97M-G43,Z97M GAMING,H97M ECO,H97M-G43,H97M-E35,Z87M GAMING,Z87M-G43,H87M-E35,CSM-H87M-G43,H87M-G43,H81M ECO,H81M-E35 V2,H81M-E34,CSM-H81M-P32,H81M-E33 V2,H81M-E35,H81M-P33 V2,H81M-E33,B85M ECO,CSM-B85M-P32,B85M-G43,B85M-E43 DASH,B85M-E33,B85M-P32,B85M-P33,B85M GAMING,CSM-B85M-E45

ITX

Z97I AC,Z97I GAMING AC,H97I AC,Z87I GAMING AC,Z87I,Z87I AC,H81I,B85I

Intel LGA 1155-Sandy Bridge/Ivy Bridge

ATX

Z77A-G45 Thunderbolt,Z77IA-E53,Z77 MPOWER,Z77A-G41,Z77A-GD80,Z77A-G43,Z77A-G45,Z77A-GD55,Z77A-GD65,Z77A-GD65 GAMING,Z77A-G45 GAMING,Z77A-G43 GAMING,ZH77A-G43,B75A-G43,Z68A-G43 (G3),Z68A-G45,Z68A-GD55,Z68A-G45,Z68A-GD80,Z68A-GD65,Z68A-GD55,Z68A-GD65,P67A-G45,P67A-G43,P67A-GD80,P67A-GD65,P67A-GD55,P67A-GD53,P67A-C43,P67S-C43,H67A-G43,PH67S-C43

MicroATX

H77MA-G43,Z77MA-G45,CSM-B75MA-P45,B75MA-P33,B75MA-E33,B75MA-G43,B75MA-P45,Z68MA-G45,Z68MA-ED55,Z68A-GD80,H67MA-ED55,H67MS-E33 ,H67MS-E23,H67MA-E45,H67MS-E43,H67MA-E35

Intel Xeon

LGA1150

X10SAT,X10SAE,X10SLX-F,X10SLA-F

LGA1155

X9SAE,X9SAE-V,X9SCA-F,X9SCA,X9SCi-LN4F,X9SCi-LN4,X9SCV-QV4,X9SCV-Q,C7P67,X9SAE,X9SAE-V,X9SCA-F,X9SCA,X9SCi-LN4F,X9SCi-LN4

Intel Core

LGA 1150

C7X99-OCE-F,C7X99-OCE,C7Z97-MF,C7Z97-M,C7Z97-OCE,C7Z87,C7Z87-OCE,X10SLV,X10SLV-Q

LGA1155

C7B75, C7H61 ,C7H61-L,C7Q67,C7Q67-H

*Low Profile Memory or VLP (Very low profile) Memory is required for server motherboard with memory slot on the side.

S5530WGM5NR-LE-2T,S5535AG2NR,S5532WGM4NR-LE,S5532WGM2NR-LE,S5532GM2NR-LE,S5532GM4NR-LE,S5532G2NR-LE,S5535AG2NR-HE,S5532G2NR-HE,S5532G2NR-UHE,S5533GM2NR-LE S5510GM3NR,S5512GM2NR,S5512WGM2NR,S5512GM4NR,S5510G2NR-LE,S5512G2NR-LE,S5515AG2NR,S5512G2NR-HE

H87MAT-A-E,H81,H87-ITX WiFi A Series

HDPLEX H5 Fanless HTPC Chassis Motherboard Compatible List for AMD CPU
(Updated:Jun. 20th 2017)

AMD Ryzen AM4

PRIME X370-A,PRIME B350-PLUS,PRIME X470-PRO,ROG CROSSHAIR VI EXTREME,ROG CROSSHAIR VI HERO (WI-FI AC),ROG CROSSHAIR VII HERO,ROG CROSSHAIR VII HERO (WI-FI),ROG STRIX B350-F GA,TUF X470-PLUS GAMING,PRIME B350M-E,PRIME A320M-A,PRIME A320M-C R2.0,PRIME A320M-K,PRIME B350M-A/CSM,TUF B350M-PLUS GAMING,ROG STRIX X470-I GAMING,ROG STRIX B350-I GAMING,ROG STRIX X370-I GAM

AMD Kaveri-Socket FM2+

CROSSBLADE RANGER,A88X-PRO,A88X-PLUS,A88XM-A,A88X,A78M-E,A68HM-K,A68HM-E,A68HM-PLUS,A58M-K,A68HM-PLUS,A58M-K,A58M-E,A58M-A/ USB3,A88XM-E,A88XM-PLUS/ CSM,A55BM-K,A78M-A,A55BM-PLUS/ CSM,A55BM-E,A55BM-A/ USB3

AMD Richland-Socket FM2

F2A85-V PRO,A55M-E,A55M-A/ USB3,A85XM-A,F2A85-V,F2A85-M/ CSM,F2A55-M/ CSM,F2A55-M LK PLUS,F2A55-M LK,F2A55-M LE,F2A85-M PRO

AMD Ryzen AM4

X370 Taichi,X370 Pro4,X370 Killer SLI/ac,X370 Killer SLI,Fatal1ty X370 Professional Gaming,Fatal1ty X370 Gaming K4,Fatal1ty X370 Gaming X,AB350 Pro4,Fatal1ty AB350 Gaming K4,X370 Gaming ITX/ac,AB350 Pro4,AB350M Pro4, AB350M, AB350 Gaming K4, AB350M-HDV,A320M Pro4,A320M,A320M-DGS,A320M-HDV,Fatal1ty X470 Gaming-ITX/ac,Fatal1ty X370 Gaming-ITX/ac Fatal1ty AB350 Gaming-ITX/ac,A320M-ITX

AMD Kaveri-Socket FM2+

Fatal1ty FM2A88X+ Killer FM2A88X Extreme6+ FM2A88X Extreme4+,FM2A88X Pro+ FM2A88X Pro3+ FM2A88X+ BTC,FM2A88M Extreme4+ FM2A88M-DG3+ FM2A88M Pro3+,FM2A88M+ BTC FM2A88M-HD+ R2.0 FM2A88M-HD+,FM2A78 Pro4+ FM2A78M Pro4+ FM2A78 Pro3+,FM2A78M Pro3+ FM2A78M-HD+ R2.0 FM2A78M-HD+,FM2A78M-DG3+,FM2A75 Pro4+ FM2A75M Pro4+ FM2A75M-HD+,FM2A68M-DG3+ FM2A68M-HD+ ,FM2A58+ BTC FM2A58 Pro+ FM2A58M+ BTC,FM2A58M-HD+ R2.0 FM2A58M-HD+ FM2A58M-VG3+ R2.0,FM2A58M-VG3+ FM2A58M-DG3+ ,FM2A55 Pro+ FM2A55M-HD+ FM2A55M-VG3+

AMD Richland-Socket FM2

FM2A85X Extreme6,FM2A85X Extreme4,FM2A85X Extreme4-M,FM2A85X Pro,FM2A85M-DG3,FM2A75 Pro4,FM2A75 Pro4-M,FM2A75M-DGS R2.0,FM2A75M-DGS,FM2A55 Pro,FM2A55M-VG3,FM2A55M-DGS R2.0,FM2A55M-DGS

AMD AM4 Ryzen

X470GT8,X370GTN,X370GT7,X370GT5,X370GT3,B350GTN,B350GT5,B350GT5,B350ET2,Hi-Fi B350S1,Hi-Fi B350S1,Hi-Fi B350S1,Hi-Fi B350S1,A320MD PRO,A320MH

AMD AM4 Ryzen and Kaveri-Socket FM2+

B350AM4-M,B350AM4-M2,A320AM4-M3 (V1.0A),A320AM4-M3D (V1.0A),A78F2P-M2,A68F2P-M2,A68F2P-M4,A55F2P-M2,A58F2P-M,A58F2P-M2,A58F2P-M4

AMD Ryzen AM4

GA-AB350M-DASH,X470 AORUS GAMING 7 WIFI (rev.1.0),X470 AORUS GAMING 5 WIFI (rev.1.0),X470 AORUS ULTRA GAMING (rev.1.0),GA-AX370-Gaming 5,GA-AB350-Gaming,GA-AB350M-Gaming 3,GA-AX370-Gaming K5,GA-AB350M-D3H,GA-AX370-Gaming K3,GA-AB350M-DS2,GA-AB350M-HD3,GA-A320M-HD2,GA-AX370-Gaming,GA-A320M-S2H (rev.1.x),GA-A320MA-M.2 (rev.1.0),GA-AX370-Gaming K7

AMD Kaveri-Socket FM2+

GA-F2A68HM-DS2,GA-F2A68HM-DS2H,GA-F2A68HM-H,GA-F2A68HM-S1,GA-F2A68H-DS3,GA-F2A68HM-HD2 ,GA-F2A88XM-D3H ,GA-F2A88XM-DS2,GA-F2A78M-DS2,GA-F2A78M-HD2,GA-F2A88XM-HD3,GA-F2A68HM-S1,GA-F2A68HM-H,GA-F2A58M-S1,GA-F2A68HM-DS2,GA-F2A68HM-HD2,GA-F2A68HM-DS2H,GA-F2A78M-D3H,GA-F2A78M-DS2,GA-F2A78M-DASH ,GA-F2A78M-D3H ,GA-F2A78M-DS2,GA-F2A78M-HD2,GA-F2A58M-DS2,GA-F2A58M-HD2,GA-F2A58-DS3,GA-F2A58M-S1,GA-F2A58M-H,GA-F2A58M-DS2H,GA-F2A55M-S1,GA-F2A75M-DS2,GA-F2A55M-DS2,GA-F2A55-DS3,GA-F2A55M-HD2,GA-F2A75M-HD2,GA-F2A75M-D3H,GA-F2A88X-D3H,GA-F2A88XM-HD3,GA-F2A88XM-D3H,GA-F2A88XM-DS2,GA-F2A88XN-WIFI,GA-F2A88X-HD3,GA-F2A88X-UP4,G1.Sniper A88X

AMD Richland-Socket FM2

GA-F2A85X-UP4,GA-F2A75M-D3H,GA-F2A75-D3H,GA-F2A55M-DS2,GA-F2A55-DS3,GA-F2A55M-HD2,GA-F2A55M-HD2,GA-F2A85XM-D3H ,GA-F2A85X-D3H,GA-F2A75M-HD2,GA-F2A85XM-HD3,GA-F2A75M-D3H,GA-F2A85XM-D3H,GA-F2A85XM-DS2,GA-F2A85XN-WIFI,GA-F2A55-DS3,GA-F2A55M-DS2,GA-F2A75M-D3H,GA-F2A55M-HD2,GA-F2A75M-HD2,GA-F2A85XM-D3H,GA-F2A85XM-HD3,GA-F2A85X-HD3,GA-F2A75M-DS2,GA-F2A55M-S1

AMD Ryzen AM4

X470 GAMING M7 AC,X470 GAMING PRO CARBON,X470 GAMING PLUS,X370 XPOWER GAMING TITANIUM, X370 GAMING PRO CARBON, X370 KRAIT GAMING, X370 GAMING PLUS,X370 SLI PLUS,B350M GAMING PRO, B350 TOMAHAWK ARCTIC, B350 TOMAHAWK, B350 PC MATE,B350M MORTAR ,B350M BAZOOKA, B350M GAMING PRO,B350M MORTAR ARCTIC,B350M MORTAR,B350M PRO-VDH,B350M PRO-VD PLUS,B350M PRO-VH PLUS,A320M GAMING PRO,A320M BAZOOKA,A320M GRENADE,A320M PRO-VH PLUS,A320M PRO-VD PLUS,A320M PRO-VHL,A320M PRO-VD/S

AMD Kaveri-Socket FM2+

A88XM-P33 V2,A88XM-E35 V2,A88XM-E45 V2,A88XI AC V2,A88X-G41 PC Mate V2,A88X-G45,A88XM GAMING,A88X-G45 GAMING,A88X-G41 PC Mate,A88XM-E45,A88XM-E35,A88X-G43,A68HM-E33,A78M-E35 V2,A78M-E45 V2,A78M-E45,A78M-E35,A55M-E35,A55M-E33,A88XI AC

HDPLEX 2nd Gen H5 Chassis and Power Supply

HDPLEX 400W AC-DC+400W DC-ATX NanoATX Combo is supported by 2nd Gen H5 for ATX/microATX/mini-ITX motherboards.

HDPLEX 2nd Gen H5 Fanless HTPC Chassis Power Supply Options

HDPLEX 200W AC-DC+400W HiFi DC-ATX NanoATX Combo is supported by 2nd Gen H5 for ATX/microATX/mini-ITX motherboards.

HDPLEX H5 fanless HTPC case can accommodate ATX Power supply internally for ITX motherboard with the help of univeral power supply rack and AC extension cord (both of which are included in the H5 package).

HDPLEX H5 fanless HTPC case can accommodate SFX Power supply internally for ATX/MicroATX motherboard which width<=21.5cm/8.6" and ITX motherboard.

HDPLEX H5 fanless HTPC case can accommodate Flex Power supply internally for all ATX/MicroATX/ITX motherboard.

HDPLEX H5 Supports 200W Linear Power Supply+160W/400W DC-ATX Combo. HDPLEX 200W Linear Power Supply is connected DC-ATX converters via 7.4*5.0mm DC input connector mounted on H5 backplate via included DC adapter.

HDPLEX H5 Supports 400W ATX Linear Power Supply via Modular ATX Bridge Board. The ATX bridge input board is included in the HDPLEX 400W ATX Linear Power Supply package.

HDPLEX H5 Supports various DC and AC Input Sockets and provides great flexibility for your customized projects.

HDPLEX 2nd Gen H5 Chassis Installation Guide

HDPLEX 2nd Gen H5 Chassis Installation Manual Ver 1.5 Download（Udpated on July. 24th.2018)

Building a Fully Silent Fanless PC - HDPlex H5 Gaming PC@fullysilentpcs.com

HDPLEX 2nd Gen H5 Fanless HTPC Case Official Review

HDPLEX H5 Fanless Computer Case Review by Chris Miconi@Tom Hardware

HDPLEX 2nd Gen H5 Fanless HTPC Case Installation Samples From Real Customers

Lars Roon Bridge/Server Build using HDPLEX H5

HTPC build log with HDPLEX H5 MK2 from AVS Forum

HDPLEX 2nd Gen H5 fanless PC Going Vertical by the famous Dekamodder from SPAIN!

HDPLEX 2nd Gen H5 fanless PC case with NAD M51 DAC and Accuphase c-290v Preamp on Audio Rack

Silent Gaming PC with Passively cooled GTX 970 in HDPLEX 2nd H5 Fanless PC case ,Temp under 70C under Four hours 3D Testing

HD-PLex H5 Gen2 Silent Fanless PC Build from Silent PC Review （SPCR Forum)

HTPC / Minimserver build (HDPlex H5 + HDPLEX 100W Linear Power Supply) Gigabyte G1 Sniper (Computer Audiophile Forum)

HDPLEX H5 with Passively Cooled GTX950, ASUS P8H77-I,Intel i7 3770T,SFX ATX Power Supply

Fanless PC build HD-PLEX 2nd Gen H5 Intel I5 5675C and Asus Z97-P(SPRC Silent PC Review Forum)

HDPLEX 2nd Gen H5 with passively cooled GTX950 powered by HDPLEX 100W Linear PSU+250W HiFi DC-ATX combo (Computer Audiophile Forum)

HDPLEX 2nd Gen H5 with Xeon 1265Lv3 and Supermicro Mobo,PPA USB Card (Aktives-hoeren Forum)

HDPLEX 2nd Gen H5 with PPA Studio AUDIO GRADE USB 3.0 PCIE CARD V3 and HDPLEX 100W Linear PSU+250W HiFi DC-ATX Combo (Computer Audiophile Forum)

HDPLEX 2nd Gen H5 Silent Music Player Build using Supermicro X11SAE-M Xeon E3-1275 Samsung 950 Pro 5 and PPA v2 USB card (Computer Audiophile Forum)

HDPlex 2nd Gen H5 fanless PC with Intel Core i3-6100T SoTM USB Card (stereo.net.au Forum)

HDPLEX 2nd Gen H5 Fanless HTPC Chassis Package Content

H5 Fanless HTPC Case

2 x Side Panel with FIN
1 x Top Plate
1 x Bottom Plate
1 x Back Plate
1 x Faceplate
Installation Kit

H5 Fanless CPU Heatsink System (Included in the H5 Package)

1 x Copper Base
1 x Aluminum Top Plate with FIN
4 x Aluminum Plate for Heatpipe Installation
8 x Copper Heatpipe
Installation Kit

H5 Accessories (Included in the H5 Package)

1 x Power Button and PCB
1 x Side I/O Board
1 x 4PIN-5.5/2.5/2.1 Cable for External 12V Device
1 x Universal power supply rack
1 x Internal AC Extension Cord
2 x Multipurpose HDD Rack

H5 Optional Accessories (Not Included in H5 Package,Please Order Seperately)

HDPLEX Passive Video Card Heatsink System
HDPLEX Silicon PCIEx16 3.0 Riser
