The HDPLEX 80W AC-DC is a fanless and capable adapter with tiny footprint.It is designed to be installed internally and outputs 19VDC.






The HDPLEX internal 80W AC-DC adapter is designed for Thin mini-ITX and Intel NUC which accepts 19VDC input.














HDPLEX internal 80W AC adapter can also work with HDPLEX 160W DC-ATX Converter as a HDPLEX nanoATX combo for regular mini-ITX/microATX motherboard in low-mid level power platform.







HDPLEX internal 80W AC adapter is supported by HDPLEX H1.S Fanless Computer case and HDPLEX H1.SODD Fanless Computer case.



In stock

HDPLEX 80W AC-DC

$32.50
USA : In Stock
Germany : In Stock
Also Available at
Product Option and Discount is not available at Those Channels
Technical Specifications


Wattage: 80W(>85% Efficiency), 19VDC 4.2A Max

Feature

Internal 80W AC adapter designed for Thin mini-ITX motherboard and Intel NUC

CE/FCC/RoHS Certified. Certification Download

Sealed Aluminum shell for max safety

Nano footprint (121.4 x 30 x 40mm) and Easy Internal Mounting

2PIN Molex Male Input for Thin ITX and Intel NUC onboard 19VDC Connector

Standard IEC C14 AC Input with EMI filter

International 100V-240V 50/60hz Voltage Supported

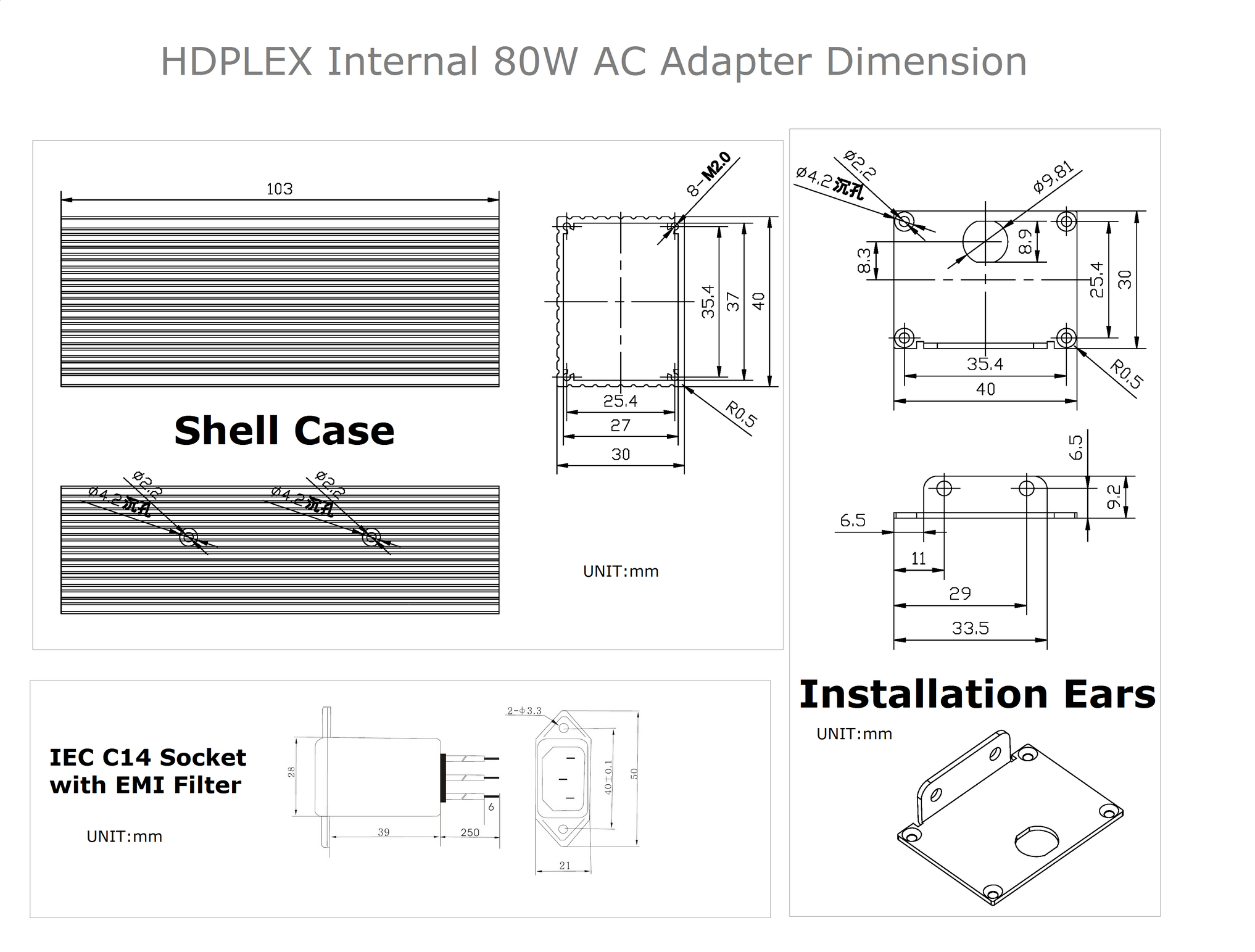

Operating Temperature: -10C -- 50C Dimension:121.4(L) x 30 (W) x 40 (H) mm, 2D Dimension, 3D (STEP format) Engineering drawing Download

Mounting Hole Spacing: 18mmx116mm (OD=4mm)

Input: C14 IEC Connetor with EMI filter (110V-240V 50/60hz)

Output: 19VDC output via 4PIN Female Molex and 2PIN Male Molex Connector



Package Content


1 x HDPLEX Internal 80W AC Adapter with 19VDC Output

1 x IEC C14 Socket with EMI filter (30cm)

1x Extension Cable with 2PIN Molex Male Connector (25cm)

4pcs M3*6 Installation Screw
