H1.S features HDPLEX minimalism design and high quality 15mm thick brushed aluminum faceplate.






H1.S utilize heavy duty mirror polished copper base and six 6mm diameter copper heatpipes for best heat transfer effeciency. Heatpipes are fully buried inside both aluminum side panels. This is a design with no comproise. H1.S supports CPU with 65W TDP Max.



H1.S CPU heatsink system supports latest Skylake LGA1151 socket, Broadwell and Haswell LGA1150 socket, Ivy Bridge and Sandy Bridge LGA1155 socket, Legacy LGA775 socket, and APU with AM2/AM3/FM1/FM2 socket.
The zigzagged aluminum top plate provides three times more heat dissipitation area.



H1.S supports mini-ITX motherboard. You could find the latest compatible motherboard list under Hardware Compatibility page.

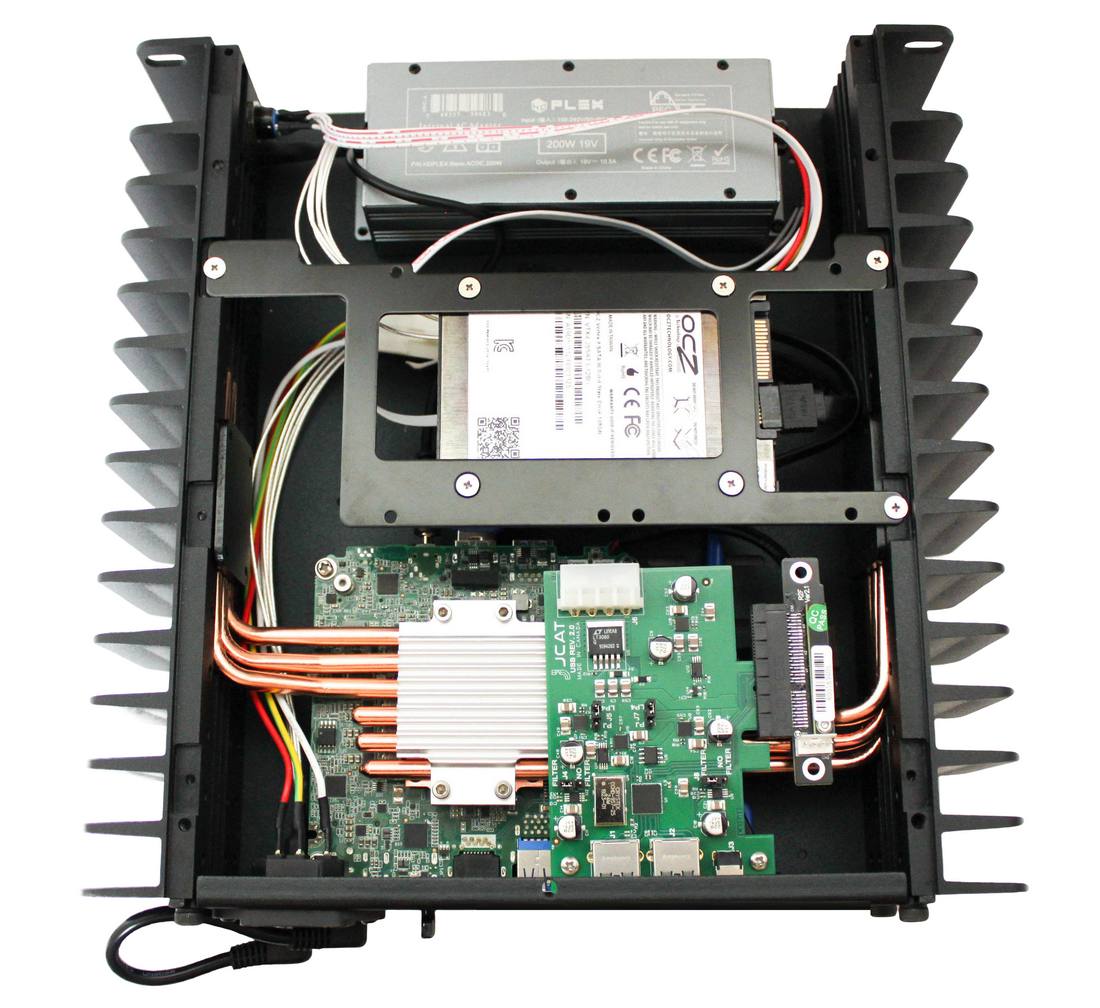

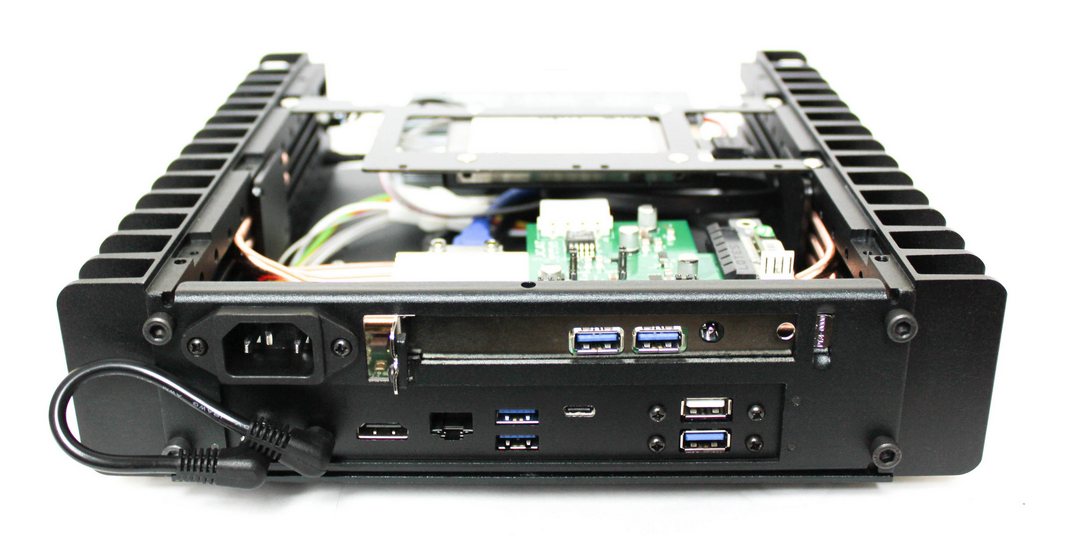

H1.S supports Thin-ITX together with full height single slot PCIEx1 or PCIEx4 expansion card with optional H1.S Thin-ITX backplate. The H1.S Thin-ITX backplate is sold separately under H1.S optional accessories.

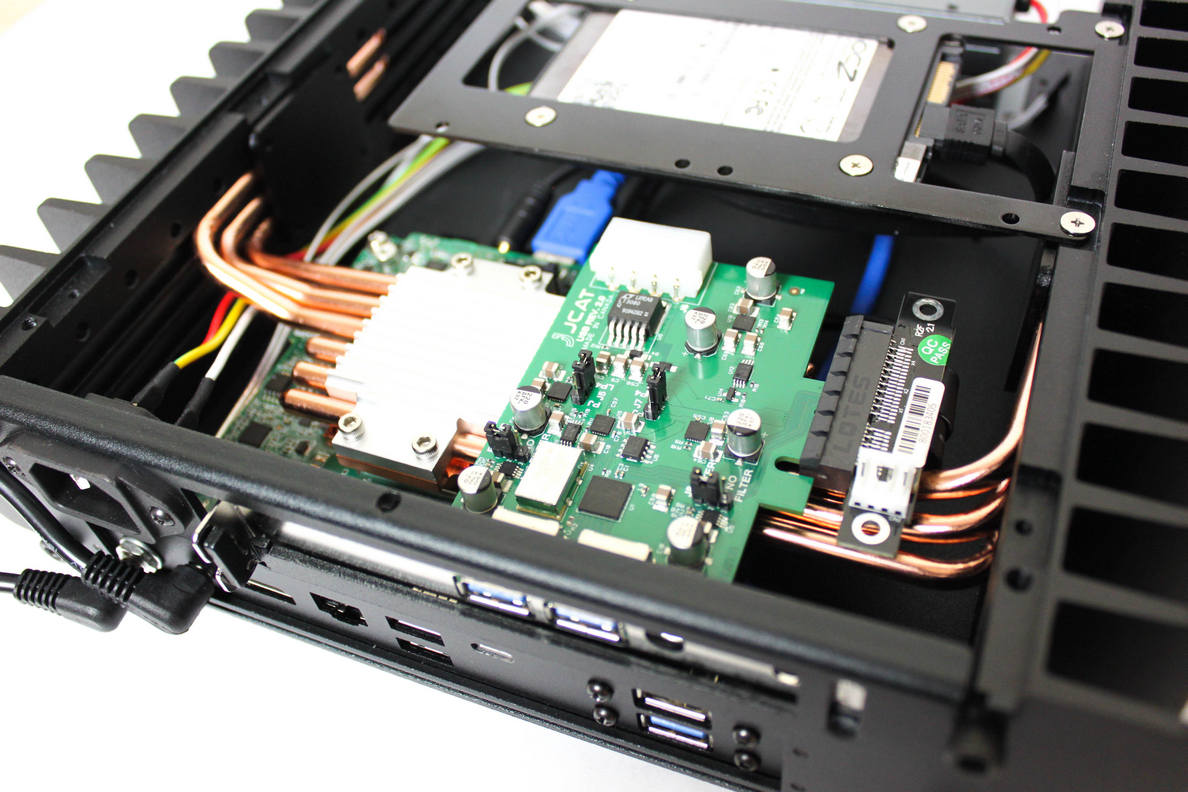

Flexible PCIEx1 or PCIEx4 riser card is also required for connecting expansion card.



H1.S supports three SSD. One SSD is installed under the ITX motherboard and the other two over the motherboard via HDPLEX H1 HDD rack.



H1.S supports 80W AC-DC+160W DC-ATX nanoATX combo for internal PSU solution.



H1.S supports 160W DC-ATX or 250W HiFi DC-ATX + External AC Aadpter solution.



H1.S supports 160W DC-ATX or 250W HiFi DC-ATX + HDPLEX 100W Linear Power Supply Audio PC solution.



H1.S supports various DC connector via the included power adapter plate. It also supports standard IEC C14 AC connector with EMI filter.



H1.S side I/O includes two USB 3.0 via silicon high speed internal cable, power ON/OFF button, and extra 12V output via 4PIN molex connector. A molex-5.5/2.5/2.1mm DC jack cable is included and could be used to connect external Hard Drive enclosure. Save the need for an extra AC brick. The 12V on side I/O PCB is supplied by internal SATA power.






Out of stock

HDPLEX H1.S V2 Fanless Chassis

$189.00
HDPLEX H1.S Enjoys Free Shipping Worldwide
Stock Status USA : ETA Sep 2017 · Germany : ETA Sep 2017
Technical Specifications


Material & Color
Material: 6063T Aluminum Alloy
Body Color: Black
Body Finish: Durable Powder Coating
Faceplate Color: Silver or Black
Faceplate Finish: Brushed Aluminum
Weight 8lbs(3.5kg)


Dimension
Internal 207.8x196x58mm (L x W x H)
External 222.8x264x63.5mm (L x W x H)
Faceplate 286x70x15mm(L x W x D)





Power Supply Option
HDPLEX 80W AC-DC+HDPLEX 160W DC-ATX nanoATX Combo Supported
HDPLEX 160W AC-DC+HDPLEX 160W DC-ATX nanoATX Combo Supported
HDPLEX 160W or 400W HiFi DC-ATX +External AC Adapter Supported
HDPLEX 160W DC-ATX +HDPLEX 200W Linear Power Supply Supported
HDPLEX 400W HiFi DC-ATX +HDPLEX 200W Linear Power Supply Supported
HDPLEX 80W AC-DC for Thin-ITX Supported
HDPLEX 160W AC-DC for Thin-ITX Supported
Third Party DC-ATX/PicoPSU+External AC Adapter Supported



Cooling System
Intel Skylake/Haswell/Ivy Bridge/Sandy Bridge CPU

AMD AM2/AM3/FM1/FM2 Socket APU Supported


HDPLEX H1 Series Six-Heatpipe CPU Heatsink System
support 65W TDP CPU





Compatibility
Mini-ITX (Thin-ITX Supported with Optional Backplate)

PCIEx1/4 Expansion Card Supported ONLY for Thin-ITX

3x2.5" SSD/HDD Supported

USB 3.0 Side Port: Two

12V Output Side Port For External Device: One (5.5/2.5/2.1mm Dual Purpose DC Jack)



Manufacture Warranty
Parts  3 year limited
Labor 3 year limited

Packaging
Double Packaged
Dimension: 12"x12"x8"
Shipping Weight: 4.5kg/ 9lbs
H1.S Hardware Compatiblity


For HDPLEX H1 Series, we recommend CPU with <=65W TDP. HDPLEX fanless chassis is best for CPU with integrated GPU via 32nm or more advanced manufacturing process.Kaby Lake,Skylake,Haswell,Sandy Bridge,Ivy Bridge and latest AMD APU are highly recommended.

H1 series should be compatible with almost all Intel CPU based mini-ITX and thin-ITX motherboard. If you are not sure if your motherboard is compatible with HDPLEX case, you are welcomed to email info at hd-plex dot com and we will confirm it for you.


Compatible Motherboard List for HDPLEX H1.S Fanless PC Case (Update Jan,30th 2017)

Intel LGA1151 socket for Kaby Lake/Skylake CPU

Mini-ITX Form Factor
Asus H170I-PLUS D3
ASUS H110I-PLUS/CSM
ASUS H110I-PLUS D3/CSM
ASRock Z270M-ITX/ac
ASRock Fatal1ty Z270 Gaming-ITX/ac
ASRock H270M-ITX/ac
ASRock Fatal1ty Z170 Gaming-ITX/ac
ASRock Z170M-ITX/ac
ASRock H170M-ITX/DL
ASRock H170M-ITX/AC
ASRock B150M-ITX
ASRock B150M-ITX/D3
ASRock H110M-ITX/D3
ASRock H110M-ITX
ASRock H110M-ITX/AC
ECS Z270H4-I
GIGABYTE GA-Z270N-WIFI
GIGABYTE GA-H270N-WIFI
GIGABYTE GA-Z170N-WIFI (rev. 1.0)
GIGABYTE G1 Gaming GA-Z170N-Gaming 5 (rev. 1.0)
GIGABYTE GA-H170N-WIFI
GIGABYTE GA-H110N
GIGABYTE GA-B150N Phoenix
GIGABYTE GA-B150N Phoenix-WIFI
GIGABYTE GA-B150N-GSM
MSI H270I GAMING PRO AC
MSI B250I GAMING PRO AC
MSI H170I Pro AC
MSI H110I Pro
MSI H110I Pro AC
EVGA Z170 Stinger 111-SS-E172-KR


Thin-ITX Form Factor (Optional Thin-ITX Blackplate Required)
H1.S supports PCIEX4 or PCIEx1 full height and full length card with Thin-ITX only

ASUS Q170T/CSM
ASUS H110T/CSM
ASRock IMB-190
ASRock IMB-190-E
ECS H110T-SI01
GA-H170TN
JetWay JNF595-H110 LGA


Intel LGA1150 socket for Haswell CPU


Mini-ITX Form Factor
GIGABYTE GA-H97N-WIFI
ASUS H97I-PLUS
MSI H97I AC
GIGABYTE GA-Z97N-Gaming 5
GIGABYTE GA-Z97N-WIFI
MSI Z97I Gaming AC
ASRock Z97E-ITX/ac
MSI Z97I AC LGA 1150
EVGA Z97 Stinger Core 3D
ASUS H87I-PLUS
ASUS Q87T/CSM mini ITX
ASRock B85M-ITX
ASRock H87M-ITX
ASRock Z87E-ITX
Gigabyte Z87N-WIFI
Gigabyte H87N-WIFI
Jet NF9J-Q87 Mini-ITX Motherboard
MSI Z87I
MSI H87I
MSI B85I



Thin-ITX Form Factor(Optional Thin-ITX Blackplate Required)
H1.S supports PCIEX4 or PCIEx1 full height and full length card with Thin-ITX only

ASUS Q87T Thin mini-ITX
ECS H87H3-TI Thin mini-ITX
Gigabyte H81TN Thin mini-ITX
Gigabyte H87TN Thin mini-ITX
Gigabyte B85TN Thin mini-ITX
Gigabyte Q87TN Thin mini-ITX



Intel LGA1155 socket for Ivy Bridge CPU


Mini-ITX Form Factor
ASRock Z77E-ITX LGA 1155 Intel Z77 HDMI SATA 6Gb/s mini-ITX (onboard USB 3.0 port will be blocked)
ASRock H77M-ITX LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard
ASUS P8H77-I LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Mini ITX (with angled SATA connector)
EVGA 111-IB-E692-KR LGA 1155 Intel Z77 HDMI SATA 6Gb/s USB 3.0 Mini ITX
ECS Q77H2-TI (V1.0A) LGA1155/ Intel Q77/ DDR3/ SATA3&USB3.0/ A&GbE/ Mini-ITX Motherboard
GIGABYTE GA-Z77N-WIFI LGA 1155 Intel Z77 HDMI SATA 6Gb/s USB 3.0 Mini ITX
GIGABYTE GA-H77N-WIFI LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Mini ITX
Intel DBS1200KP Mini ITX Server Motherboard LGA 1155 Intel C206 DDR3 1066/1333
Intel BOXDH77DF LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Mini ITX
Intel BOXDQ77KB LGA 1155 Intel Q77 HDMI SATA 6Gb/s USB 3.0 Mini ITX
Intel Executive DQ77KB Desktop Motherboard
Jetway NF9E-Q77 Mini-ITX Motherboard
JetWay JNF9F-H61 LGA 1155 Intel H61 Mini ITX Industrial Grade Intel Motherboard
MSI Z77IA-E53 LGA 1155 Intel Z77 HDMI SATA 6Gb/s USB 3.0 Mini ITX
ZOTAC H77-ITX H77ITX-A-E WiFi A SATA3&USB3.0 Motherboard
Zotac Z77ITX-A-E Desktop Motherboard


Thin-ITX Form Factor(Optional Thin-ITX Blackplate Required)
H1.S supports PCIEX4 or PCIEx1 full height and full length card with Thin-ITX only

GIGABYTE H77TN-Thin mini-ITX
GIGABYTE B75TN-Thin mini-ITX
Intel BOXDQ77KB-Thin mini-ITX
Intel DH61AG-Thin mini-ITX




Intel LGA1155 socket for Sandy Bridge CPU


Mini-ITX Form Factor
ASRock B75M-ITX LGA 1155 Intel B75 HDMI SATA 6Gb/s USB 3.0 Mini ITX
BIOSTAR TH61 ITX LGA 1155 Intel H61 HDMI USB 3.0 Mini ITX
BIOSTAR TH61ITX+RCH LGA 1155 Intel H61 HDMI USB 3.0 Mini ITX
ECS H61H2-I3 (v1.0) LGA 1155 Intel H61 HDMI Mini ITX Intel Motherboard
ASUS P8H61-I R2.0 LGA 1155 Intel H61 HDMI USB 3.0 Mini ITX (with angeled SATA connector)
Foxconn H61S LGA 1155 Intel H61 Mini ITX Intel Motherboard
Foxconn H67S LGA1155 mini-ITX Motherboard
GIGABYTE GA-H61N-USB3 LGA 1155 Intel H61 HDMI USB 3.0 Mini ITX
Giada MI-H61-01 LGA 1155 Intel H61 HDMI USB 3.0 Mini-ITX Motherboard
Intel DH61AG Desktop Motherboard
Intel Classic DH61DL Desktop Motherboard
Intel Media DH67CF Desktop Motherboard
Intel BOXDH67CFB3 LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 Mini ITX
Intel Executive DQ67EP Desktop Motherboard
Intel BOXDH61DLB3 LGA 1155 Intel H61 USB 3.0 Mini ITX
Intel BOXDQ67EPB3 LGA 1155 Intel Q67 SATA 6Gb/s USB 3.0 Mini ITX
JetWay JNF9A-Q67 LGA 1155 Intel Q67 HDMI SATA 6Gb/s Mini ITX
MSI H67 LGA1155 mini-ITX Motherboard
MSI H61I-E35 (B3) LGA 1155 Intel H61 mini-ITX Motherboard
ZOTAC H67ITX-C-E LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 Mini ITX
ZOTAC Z68ITX-A-E LGA 1155 Intel Z68 HDMI SATA 6Gb/s USB 3.0 Mini ITX
Zotac H67ITX-A-E LGA1155 mini-ITX Motherboard




Intel LGA1156 socket for Core2Duo Clarkdale CPU


Mini-ITX Form Factor
ECS H55H-I Mini ITX Intel Motherboard
GIGABYTE GA-H55N-USB3 Mini ITX Intel Motherboard
Intel BOXDH57JG Mini ITX Intel Motherboard
ZOTAC H55ITX-A-E Mini ITX Intel Motherboard


AMD FM2/FM1 socket for APU


Mini-ITX Form Factor
GIGABYTE GA-F2A88XN-WIFI FM2+ / FM2 AMD A88X HDMI SATA 6Gb/s USB 3.0 Mini ITX Motherboard
GIGABYTE GA-F2A85XN-WIFI FM2/ AMD A85X/ DDR3/ SATA3&USB3.0/ WiFi/GbE/ Mini-ITX Motherboard
Gigabyte GA-A75N-USB3 mini-ITX Motherboard
MSI FM2-A75IA-E53 FM2 AMD A75 (Hudson D3) HDMI SATA 6Gb/s USB 3.0 Mini ITX Motherboard


Thin-ITX Form Factor(Optional Thin-ITX Blackplate Required)
ECS A78F2-TI Socket FM2+ Thin ITX AMD Motherboard
HDPLEX H1.S Installation Guide


HDPLEX H1.S Version 2 Installation Guide Download(Udpated on May.26th.2016)


HDPLEX H1.S Fanless HTPC Case Official Review

HDPLEX H1.S Fanless HTPC Case Installation Samples From Real Customers

HDPLEX H1.S fanless PC build from Italy with eSATA port added!

完美靜音機箱? HDPlex H1.S換CPU實錄 *Youtbue Video!

HDPLEX H1.S fanless PC with AMD FM2+ build from Italy

HDPLEX H1.S fanless PC Haswell build from Olso,Norway

HDPLEX H1.S Fanless PC with VFD MOD from SPCR Forum

HDPLEX H1.S Fanless PC Hackintosh dual boot OS X and Win8.1 Build with HDPLEX linear PSU

HDPLEX H1.S Fanless Computer using AMD AM1 motherboards ASRock AM1H-ITX and AMD Athlon 5320 2050 from Germany PC Audio Aktives-hoeren Forum

Hi-End Audo Player H1.S, using core i7 TDP 88W with HDPLEX 100W Linear Power Suppy and Omega DAC (from Videohifi Forum Italy)

HDPLEX H1.S Fanless PC case Keeps the CPU cooler than a fan! (Amazon feedback)

HiXPower BMS Control Unit Fanless Server HDPLEX H1.S from Cool Project Italy (Gallery with Thermal Pictures, Very Cool!)

HDPLEX Fanless H1.S HTPC Case review with Gigabyte H97N-WIFI from Chris Baker Blog

HDPLEX fanless H1.S computer case with ASRock Z87E ITX, RipJaw 16GB Memory, Dell 90W Adapter for Debian Build

HDPLEX fanless H1.S computer case with ASRock Z87E ITX and core i7 4770T TDP 45W

HDPLEX Fanless H1.S PC case, ASUS Q87T, i5-4570S, 16G RAM, 256G mSATA

HDPLEX Fanless H1.S mini ITX case, Asrock Z87E, i3-4130t review + pics

[開箱] 舊酒新瓶全被動散熱APU ITX CAS HDPLEX fanless H1.S with Gigabyte F2A88XN-WIFI ITX and AMD A10-5700

HD-Plex H1.S Mini-ITX Gehäuse mit Passivkühlung

HDPLEX fanless H1.S PC case Unboxing from Fanlesstech.com

H1.S fanless computer case with Intel Core i3 4310 ASRock B85N ITX Internal IR MCE Remote

HDPLEX H1.S Thin ITX Fanless PC case Review from HiFiWigwam Forum

HDPLEX H1.S fanless pc case with thin mini ITX Gigabyte GA-h87tn mobo from Italy

HDPLEX H1.S fanless PC case with GA87TN thin mini ITX motherboard and Ceton turner card

HDPLEX H1.S fanless Thin mini-ITX case as netrounds probe

HDPLEX H1.S Fanless PC with Jetway NF9G-QM77 PGA988 (ADE4INLANG) + Intel i7-3687U (17W) Mobile CPU

HD-Plex H1.S fanless pc,Intel Haswell core i5 4670T,ASUS Q87T,0db Complete silent

HDPlex H1.S review: Premium silence

HDPLEX H1.S and ASRock mini-ITX review from SPCR Forum ( Silent PC Review)

HDPLEX H1 Thin ITX ASUS Q87T and Intel i5-4670S review

HDPLEX fanless H1.S chassis with ASRock Z87E ITX Core i3 4130

HDPLEX H1.S with Core i3 4130t, Asus H87I-Plus, Kingston HyperX

My HDPLEX H1.S fanless case with Intel Pentium G3420

Simple,is,The Best。只为聆听而来-極静音AV盒子HDPLEX H1.S装机

HDPLEX H1.S with ASRock B85M ITX review from Hardware.fr

[张罗新机] 追求性能和宁静的平衡–来自HDPLEX的H1.S

HDPlex H1.S with ASRock H81M-ITX, I3-4130T Hardware.Fr

HDPlex H1.S Review from Hungary (Logout HU Forum)

H1.S Package Content


1 x HDPLEX H1.S Fanless Computer Case Double Packaged.

1 x HDPLEX Fanless CPU Heatsink System with 3.5g high quality thermal paste


Accessories (Included in the H1 Package):

Installation Screw Kit
2.5mm Tip M4 HEX Head Screw Driver
Flat SATA Power and DATA 40cm Extension Cable
PCI Cover Bracket
SSD/2.5” HDD Rack for H1 Series
Side I/O PCB (Dual USB 3.0, Power Button, 12VDC Output)
Power Adapter Plate for 7.4*5.0 and 5.5/2.5 DC Connector
External 4PIN-5.5/2.5/2.1mm dual purpose power cable for external 12VDC device


Optional Accessories:

HDPLEX 80W AC-DC Adapter with 19V Output
HDPLEX 160W AC-DC Adapter w/PFC 19V Output
HDPLEX 160W DC-ATX Power Supply
HDPLEX 400W Hi-Fi DC-ATX Power Supply
HDPLEX 200W Linear Power Supply
Backplate for Thin-ITX
